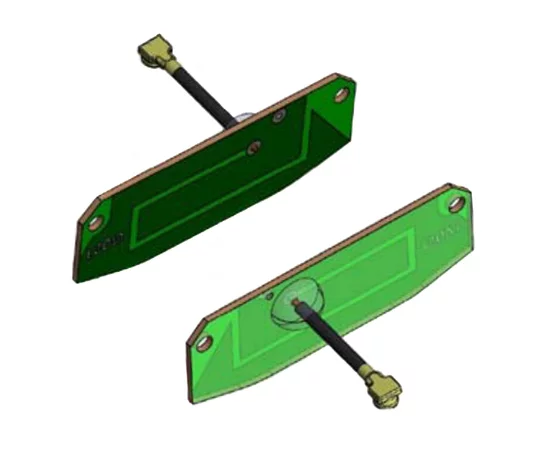

AN021 (replacement for: GSM-ANT021)
Symbol Micros:
RF AN021
Case : Rys.AN021
GSM Antenna, 824÷960/1710÷1990MHz, gain 2.0dBi, dimensions 36×13.2×0.8mm IPEX connector, adhesive mount, RF1.13 10cm cable
Parameters
| Dimensions: | 36x13,2x0,8mm |
| Frequency range: | 824~960/1710~1990MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | PCB |
| Type of connector: | IPEX |
Manufacturer:: import
Manufacturer part number: AN021 RoHS
Case style: Rys.AN021
In stock:
1 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 50+ | 200+ |
|---|---|---|---|---|---|
| Net price (EUR) | 1,8999 | 1,5551 | 1,3561 | 1,2334 | 1,1871 |
Manufacturer:: import
Manufacturer part number: AN021 RoHS
Case style: Rys.AN021
In stock:
50 pcs.
| Quantity of pcs. | 1+ | 3+ | 10+ | 50+ | 200+ |
|---|---|---|---|---|---|
| Net price (EUR) | 1,8999 | 1,5551 | 1,3561 | 1,2334 | 1,1871 |
| Dimensions: | 36x13,2x0,8mm |
| Frequency range: | 824~960/1710~1990MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | PCB |
| Type of connector: | IPEX |
| Mounting: | Adhesive |
| Cable type: | RF1.13 |
| Polarisation: | Linear |
| Cable length: | 0,1m |
| Impedance: | 50Ohm |
Detailed description
Typ produktu: Antena GSM
Częstotliwość: 824÷960/1710÷1990MHz
Zysk energetyczny: 2.0dBi
Wymiary zewnętrzne: 36×13.2×0.8mm
Typ złącza: IPEX
Montaż: przyklejany
Przewód: RF1.13 10cm
Polaryzacja: liniowa
V.S.W.R: <3.0
Impedancja: 50Ω
Temperatura pracy: -40÷85°C
