LM12-3004PC
Symbol Micros:
CZ LM12-3004PC
Gehäuse: Rys.LM12-3004PC

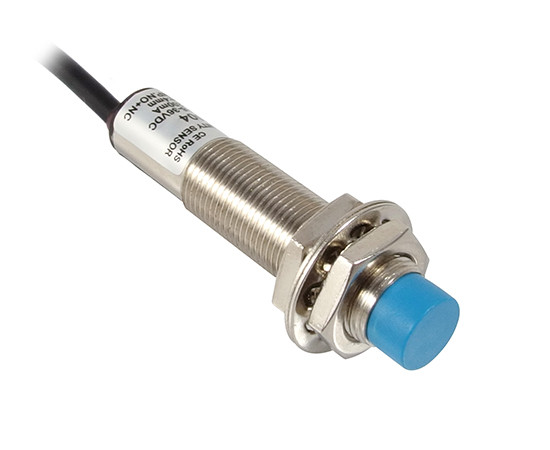

Induktiver Sensor; Bereich: 0-4 mm; PNP/NO+NC; 10-30 VDC; M12, zylindrisch; Draht: 2m; 200mA; Betriebstemperatur: -25°C÷75°C; Metall; IP67
Parameter
Ausgangskonfiguration: | PNP/NO+NC |
Bereich: | 0÷4mm |
Sensorgehäuse: | M12, cylindryczna |
Versorgungsspannung: | 10÷30VDC |
Gehäuse-Material: | Metal |
Verbindung: | Przewód 2m |
Betriebsstrom: | 200mA |
Ausgangskonfiguration: | PNP/NO+NC |
Bereich: | 0÷4mm |
Sensorgehäuse: | M12, cylindryczna |
Versorgungsspannung: | 10÷30VDC |
Gehäuse-Material: | Metal |
Verbindung: | Przewód 2m |
Betriebsstrom: | 200mA |
Betriebstemperatur (Bereich): | -25°C ~ 75°C |
Dichtheitsklasse: | IP67 |
Sensoren-Typ: | Indukcyjny |
Ausführliche Beschreibung
Category: inductive sensor
Output: PNP/NO+NC
Detection distance: 4mm
Dimensions: 12x58mm
Mounting method: non-flush
Operating voltage: 6~36 VDC
Shell material: cylindrical metal
Mounting: wire 2m
Sealing: IP67
Output current.: 200mA
Consumption current: DC<15mA
Operating temperature: -25°C ~ 55°C
