| Abmessungen: | 90,7x92x22,7mm |
| Versorgungsspannungsbereich: | 5V |
| Schnittstelle: | RS232 |
| Downlink-Übertragung: | 230kbps |
| Hersteller: | WIZnet |
| Betriebstemperatur: | 0°C ~ 85°C |
| Übertragung: | LAN |
| Abmessungen: | 90,7x92x22,7mm |
| Versorgungsspannungsbereich: | 5V |
| Schnittstelle: | RS232 |
| Downlink-Übertragung: | 230kbps |
| Hersteller: | WIZnet |
| Betriebstemperatur: | 0°C ~ 85°C |
| Übertragung: | LAN |

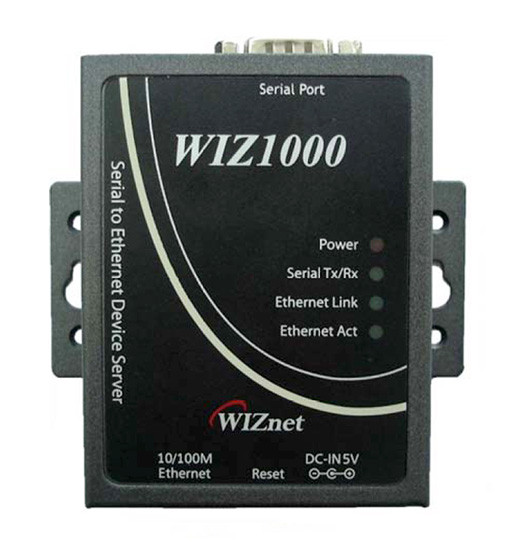

WIZ1000 is an external device server that performs “Serial to Ethernet” function. WIZ1000 is the protocol converter that transmits the data sent by serial equipment as TCP/IP data type, and converts back the TCP/IP data received through the network into serial data to transmit back to the equipment.
Just by connecting LAN & Serial cable to the device, you can easily add the ‘Serial to Ethernet’ function.
Features:
• External device server to perform “Serial/Ethernet Convert Function”
• Support easy implementation of Ethernet to the existing serial device
• Guarantee high system stability and reliability by using W5100 hardware chip
• Support PPPoE Connection
• Supports firmware customization
• Telnet Com Port Option (RFC2217) compliant
• Supports serial configuration by using AT command
• Software utilities for easy configuration
• User friendly configuration tool program & its source code
• WIZ VSP (Virtual COM port Program)
• CE, FCC, KCC certified
Hardware Specification:
Dmension (mm) : 90.7 x 92 x 22.7 (L x W x H)
Input Voltage : DC 5V
Max. Power Consumption : 200mA
Operation Temperature : 0~80°C
RoHS, SVHC Compliant
Utilities:
- Configuration Tool for Windows
- WizVSP: Virtual Serial Port (COM port) for User’s Programs
