Banana connectors
2022-08-08

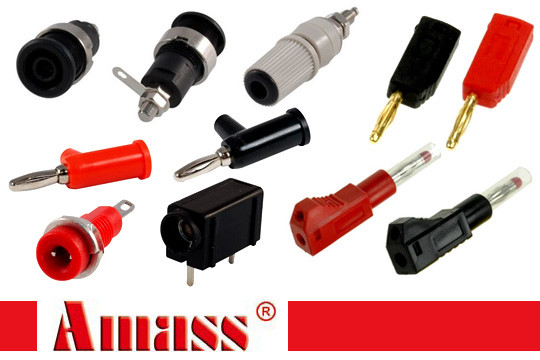

We recommend high quality banana plugs and banana sockets from AMASS.
They are suitable for different types of battery chargers, power supplies or measuring devices as well as for fast connection (via cable) of other devices. Their advantage is a secure and rigid attachment.
| SYMBOL | DESCRIPTION |
|---|---|
|
|

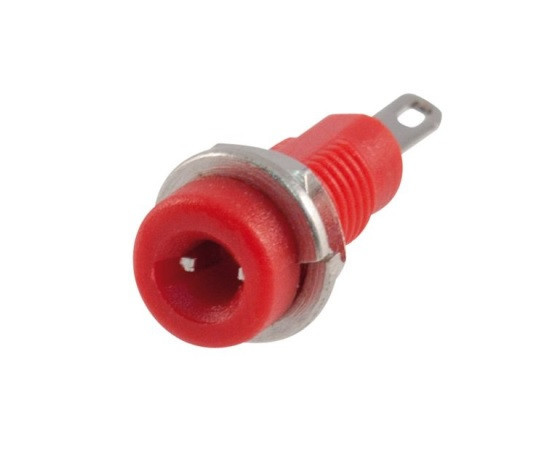

Banana socket 2mm, red, insulated, for panel, soldering, overall length: 24mm, 30VAC, 60VDC, 6A; insulator material: ABS, contact plating: nickel |
|
|

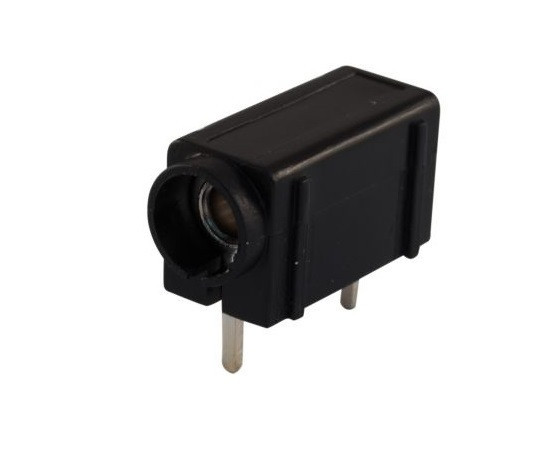

Banana socket 4mm, black, insulated, PCB, soldering, overall length: 24mm, 30VAC, 60VDC, 24A; insulator material: PA, contact plating: silver, eqiv. BSM-410-B |
|
|

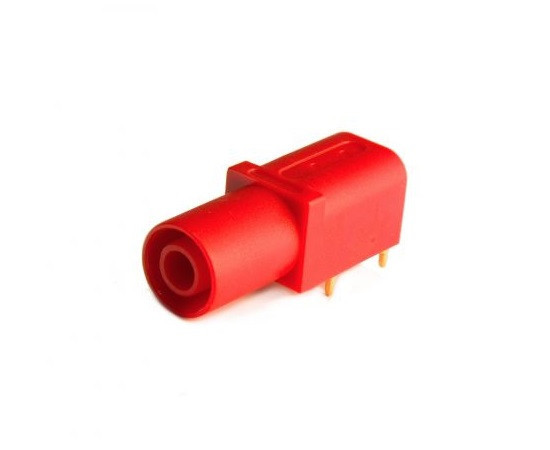

Banana socket 4mm, red, insulated, PCB, overall length: 33,6mm, 1000V CAT III, 24A; insulator material: PA, contact plating: gold, eqiv. BSM-420-R |
|
|

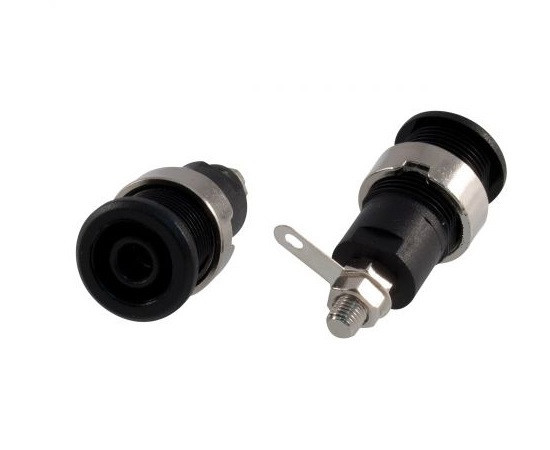

Banana socket 4mm, black, insulated, for panel, screwed, overall length: 23.5mm, 1000V CAT III, 32A; insulator material: PA, contact plating: nickel, eqiv. BS-324-LS-B |
|
|

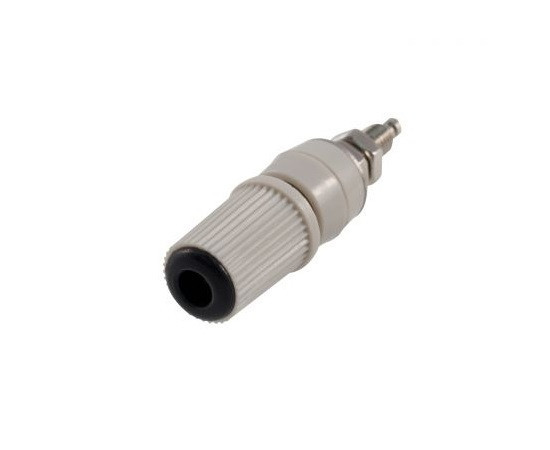

Banana socket 4mm, black, insulated, overall length: 45mm, 30VAC, 60VDC, 24A; insulator material: ABS, contact plating: nickel, eqiv. BS-244DSM-B |
|
|

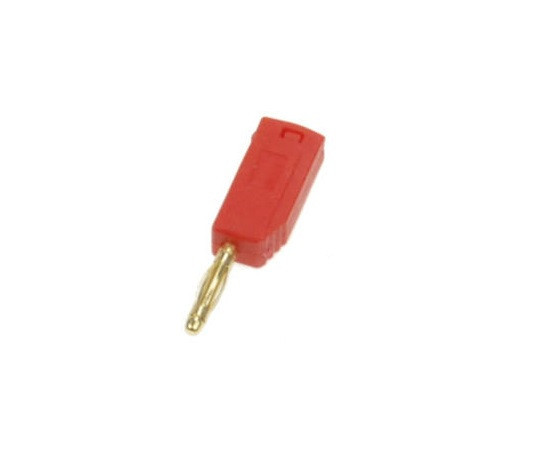

Banana plug 2mm, red, insulated, for cable, solder, overall length: 26.5mm, 30VAC, 60VDC, 10A; insulator material: PE, contact plating: gold; eqiv.22.2616-22 STAUBLI |
|
|

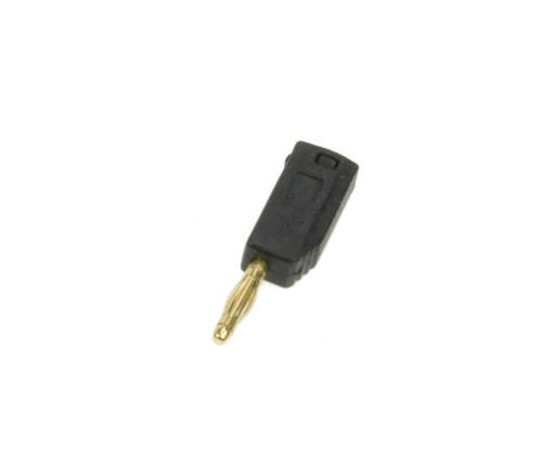

Banana plug 2mm, black, insulated, for cable, solder, overall length: 26.5mm, 30VAC, 60VDC, 10A; insulator material: PE, contact plating: gold; eqiv.22.2616-21 STAUBLI |
|
|
Banana plug 4mm, red, screw, overall length: 39mm, 30VAC, 60VDC, 24A; insulator material: ABS, contact plating: nickel; eqiv.BDP-100-R |
|
|
Banana plug 4mm, black, screw, overall length: 39mm, 30VAC, 60VDC, 24A; insulator material: ABS, contact plating: nickel; eqiv.BDP-100-B |
|
|

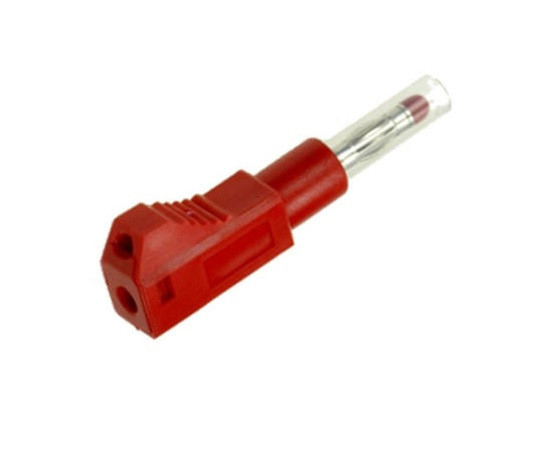

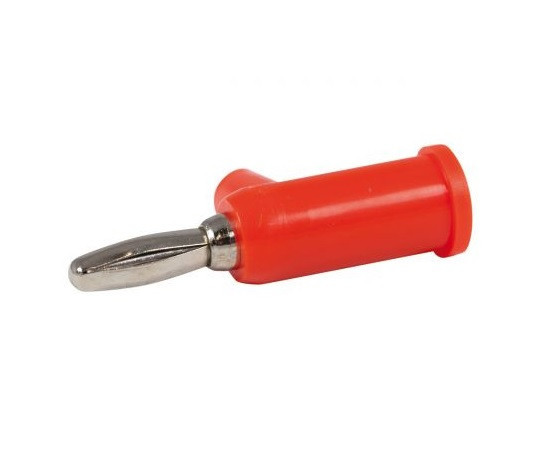

Banana plug 4mm, red, solder, for cable, overall length: 56mm, CAT II 600V, 32A; insulator material: PA, contact plating: nickel, eqiv.BSP-104-R |
|
|

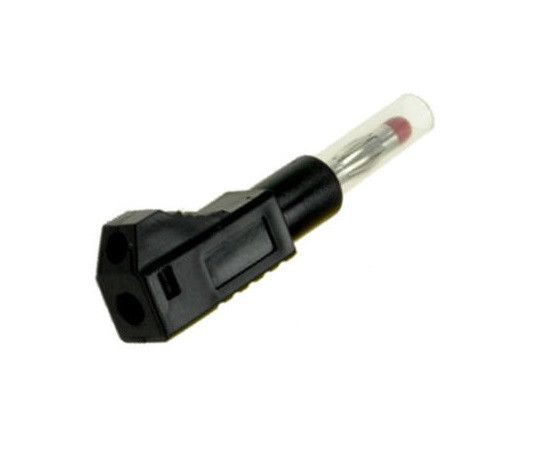

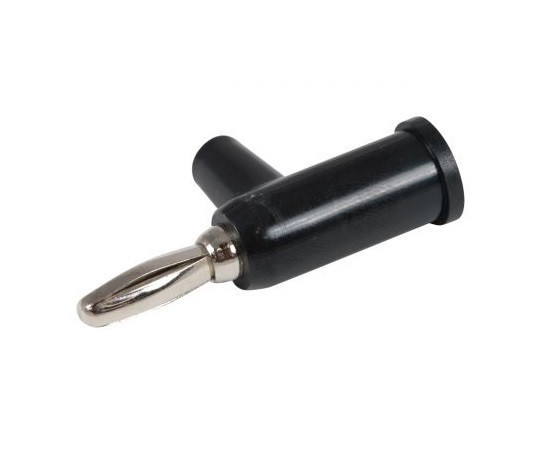

Banana plug 4mm, black, solder, for cable, overall length: 56mm, CAT II 600V, 32A; insulator material: PA, contact plating: nickel, eqiv.BSP-104-B |
Get acquainted with our entire range of banana connectors!
