LAY5 switches

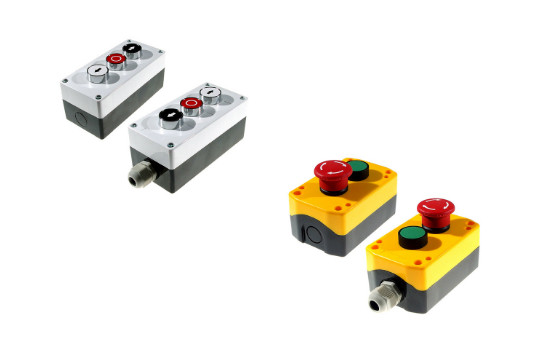

LAY5 switches are available in 1 to 6 push-button cases (NO/NC/security), have IP40 or IP54 protection certificate and all required for safe operation CE, RoHS, TUV, UL certificates.
They are used both at home and in professional machines as control panels or safety devices. They are designed to work with a single-phase mains voltage with a maximum operating current of 5A. For special applications there are also switches to prevent unauthorized access protected with a key.
The manufacturer of LAY5 switches is Yueqing Xindali Industries Co. , Ltd. , founded in 1997. The company specializes in creating electrical components such as buttons, switches, lights. It is known for its excellent quality products.
|
Button |
Type |
Colour |
Printing |
Security |
|
|
|

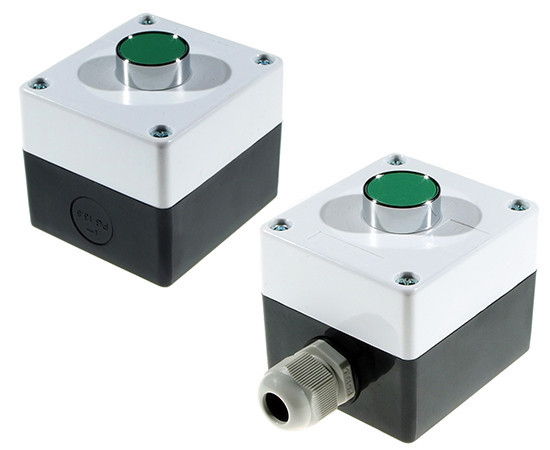

1 |
N/O pressed with spring |
green |
no |
IP40/54 |
|
|

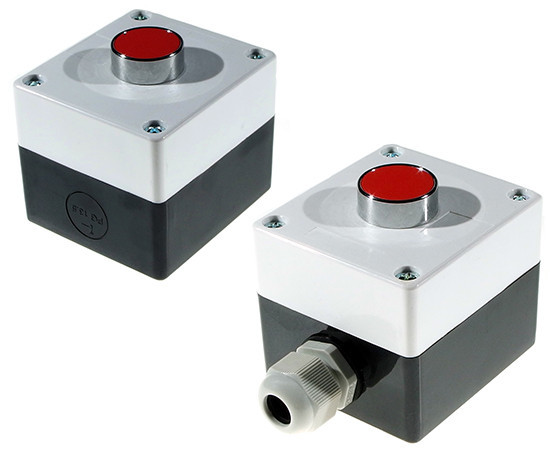

1 |
N/C pressed with spring |
red |
no |
IP40/54 |
|
|

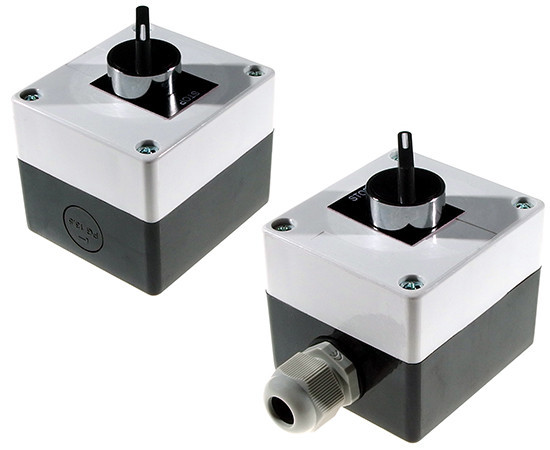

1 |
N/O rotatable |
black |
poz1 - stop, |
IP40/54 |
|
|
1 |
N/O-N/C |
black |
poz1 - stop, |
IP40/54 |
|
|

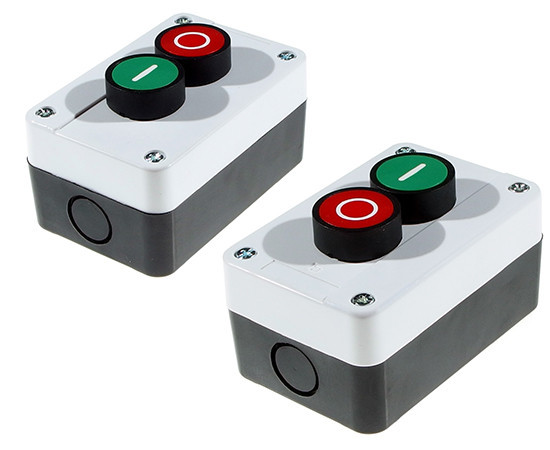

1 |
N/O pressed with spring |
green |
white horizontal line |
IP40/54 |
| 2 |
N/C pressed with spring |
white |
white circle |
||
|
|

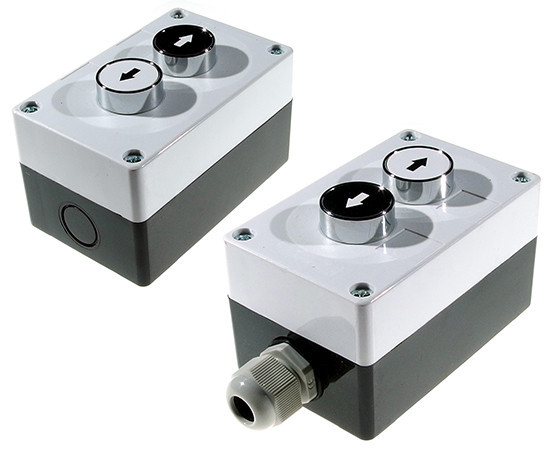

1 |
N/O pressed with spring |
white |
black arrow down |
IP40 |
| 2 |
N/O pressed with spring |
black |
black arrow up |
||
|
|

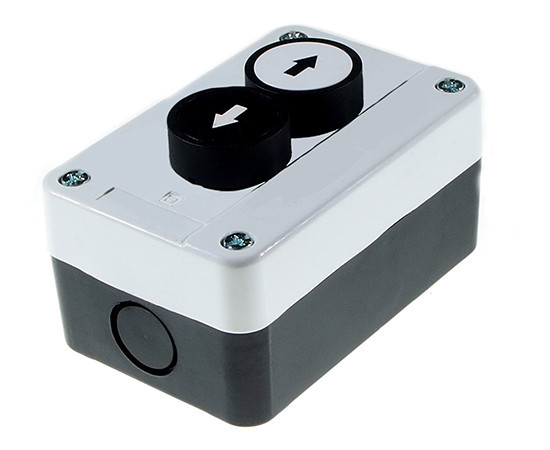

1 |
N/O pressed with spring |
black |
black arrow up |
IP40 |
| 2 |
N/O pressed with spring |
white |
black arrow down |
||
|
|

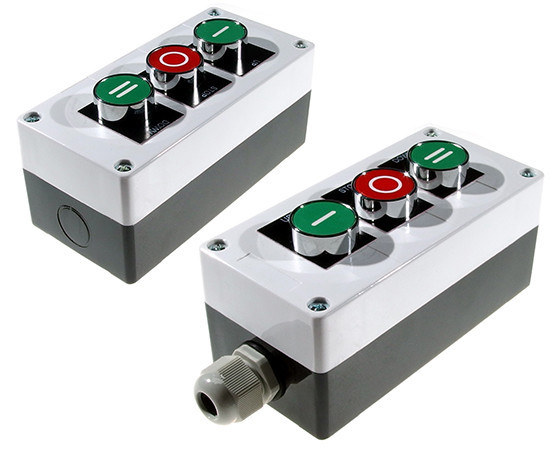

1 |
N/O pressed with spring |
green |
down |
IP40/54 |
| 2 |
N/C pressed with spring |
red |
stop |
||
| 3 |
N/O pressed with spring |
green |
up |
||
|
|

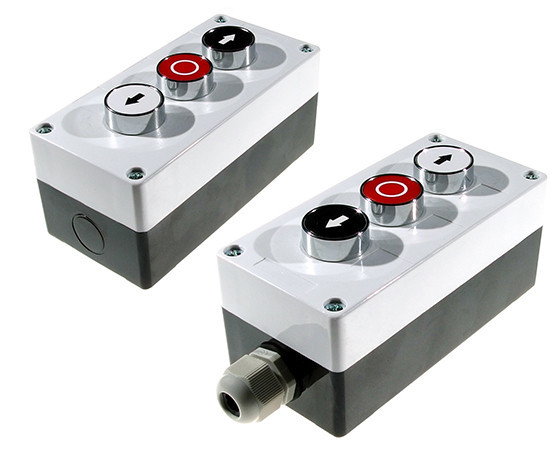

1 |
N/O pressed with spring |
white |
black right arrow |
IP40/54 |
| 2 |
N/C pressed with spring |
red |
white circle |
||
| 3 |
N/O pressed with spring |
black |
black left arrow |
||
|
|

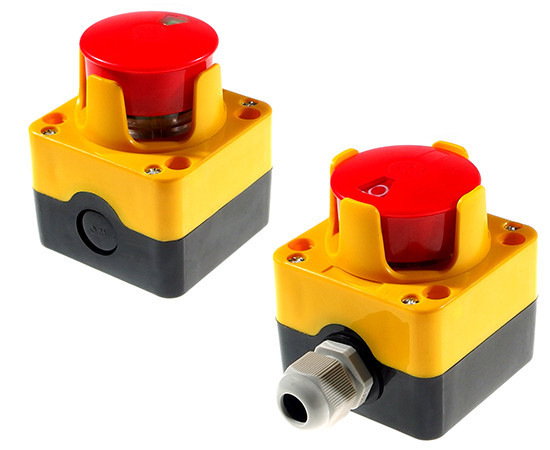

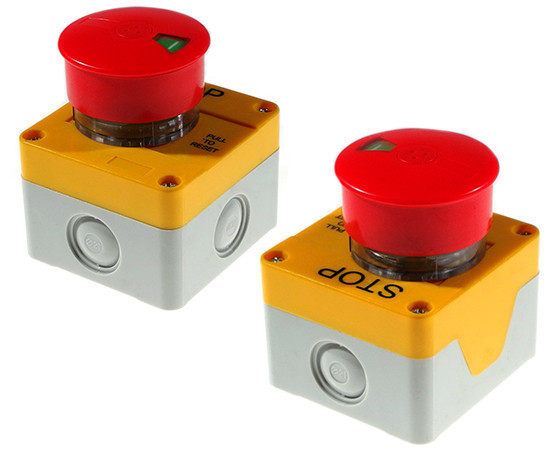

1 |
N/C+N/C mushroom push-pull |
red |
no |
IP54 |
|
|

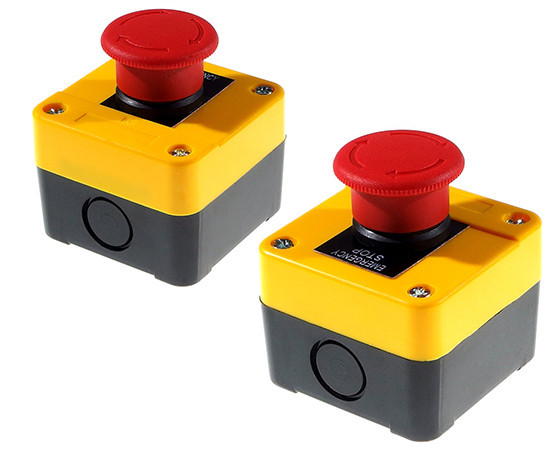

1 |
N/C pressed, turn it to release |
red |
stop |
IP40/54 |
|
|

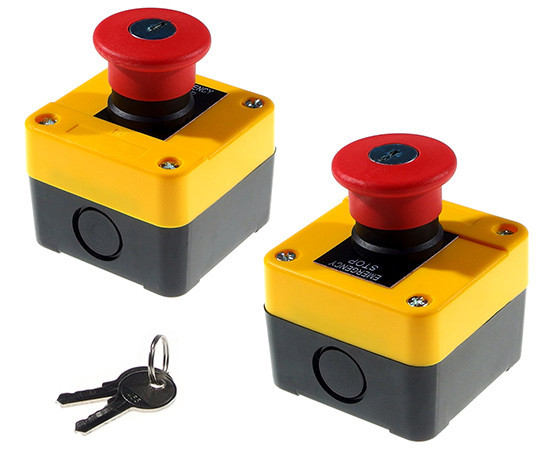

1 |
N/C released when the key is inserted |
red |
stop |
IP40/54 |
|
|
1 |
N/C mushroom push-pull |
red |
no |
IP40/54 |
|
|

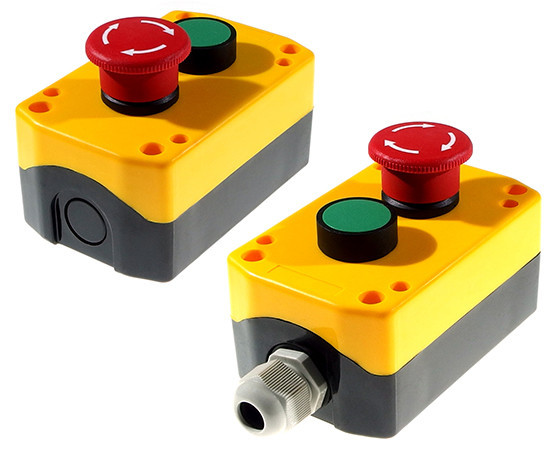

1 |
N/C pressed, turn it to release |
red |
arrows in a circle |
IP40/54 |
| 2 |
N/C pressed with spring |
green |
no |
