LED lamps G9
The G9 LED incandescent lamp is an increasingly common product in the lighting industry.
The G9 incandescent lamp is a small and efficient light source that is connected directly to the 230V system. It is characterized by its small dimensions and by the use of modern LED technology also by its high efficiency.
| SYMBOL | DESCRIPTION |
|---|---|
|
|

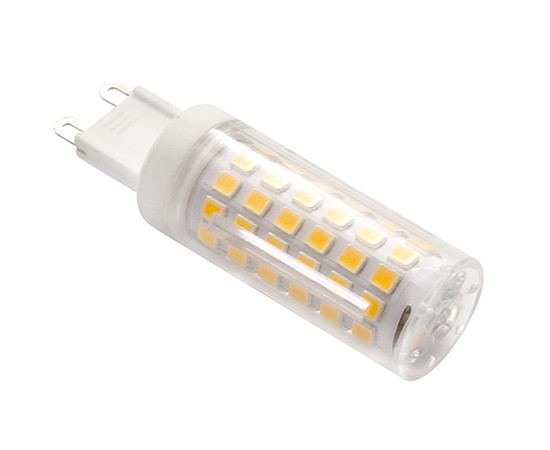

LED bulb 10.0W (equivalent to 90W), warm white (3000K), 1000lm, 360°, 230V Shape: roller, base: G9, Ω19×65mm, 74x SMD2835 |
|
|

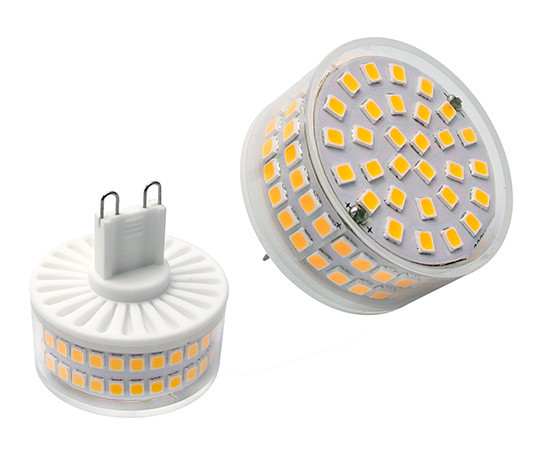

LED bulb 5.5W (Equivalent to 55W), warm white (3000k), 490lm, 360°, 230 V AC Shape: shroom, base: G9, R40x40mm 90x SMD2835 |
|
|

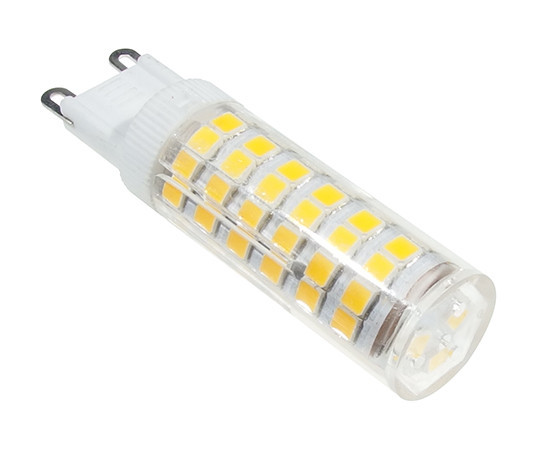

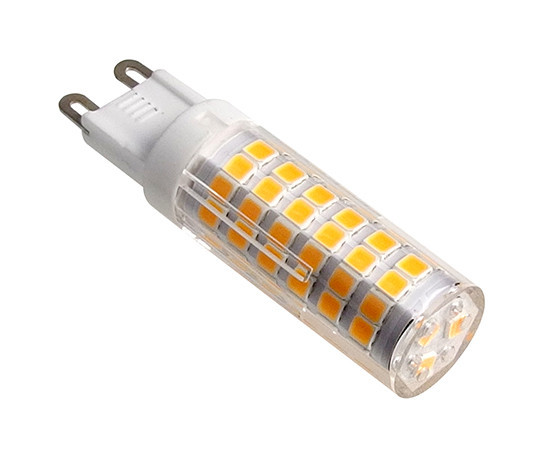

LED 7W (EQ 60W), WW (3000K), 500lm, 360°, 230 V AC Shape; roller, base G9, R16x62mm, 75x SMD 2835 |
|
|

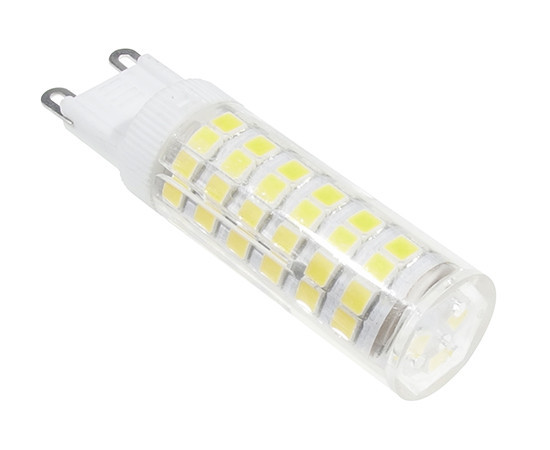

LED 7W (EQ 60W), CW (6000K), 500lm, 360°, 230 V AC Shape; roller, base G9, R16x62mm, 75x SMD 2835 |
|
|

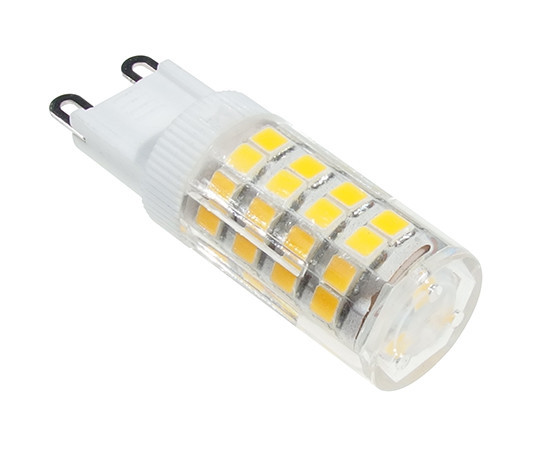

LED 5W (EQ 45W), WW (3000K), 420lm, 360°, 230 V AC Shape; roller, base G9, R16x50mm, 50x SMD 2835 |
|
|

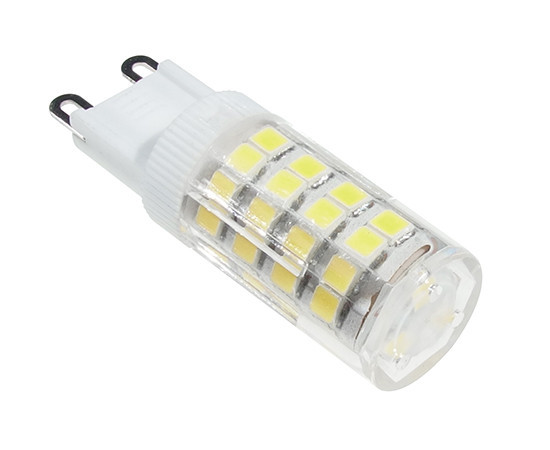

LED 5W (EQ 45W), CW (6000K), 420lm, 360°, 230 V AC Shape; roller, base G9, R16x50mm, 50x SMD 2835 |
|
|

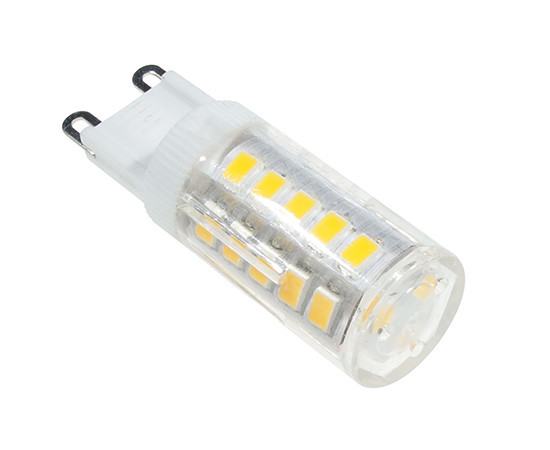

LED 3.5W (EQ 30W), WW (3000K), 320lm, 360°, 230 V AC Shape; roller, base G9, R16x50mm, 33x SMD 2835 |
|
|
LED 3.5W (EQ 30W), CW (6000K), 320lm, 360°, 230 V AC Shape; roller, base G9, R16x50mm, 33x SMD 2835 |
|
|
LED 3W (EQ 30W), WW (3000K), 300lm, 360°, 230 V AC Shape; flat, base G9, R15x55mm, 28x SMD 2835 |
|
|
LED 3W (EQ 30W), WW (3000K), 330lm, 360°, 230 V AC Shape; flat, base G9, R15x55mm, COB 2508 |
|
|
LED 3W (EQ 30W), CW (6000K), 330lm, 360°, 230 V AC Shape; flat, base G9, R15x55mm, COB 2835 |
|
|

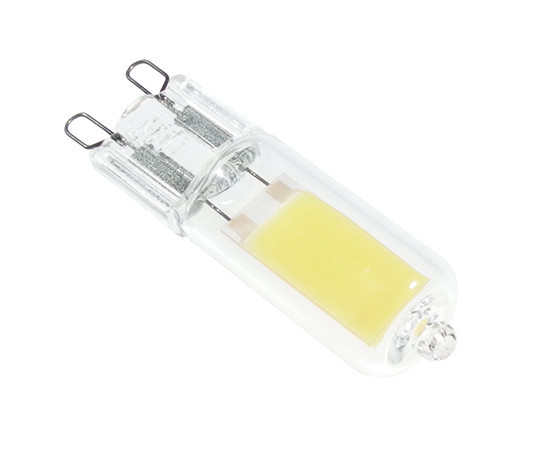

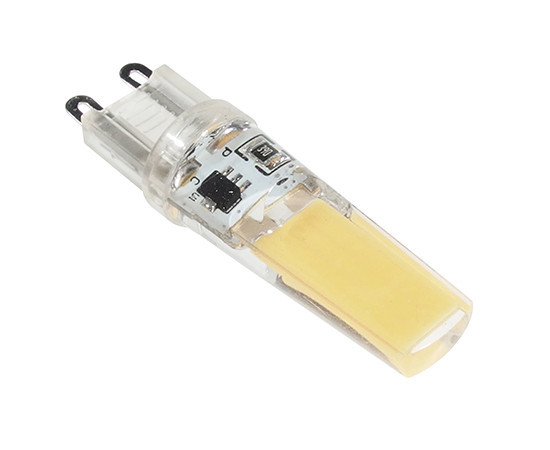

LED 2W (EQ 20W), CW(6000K), 220lm, 360°, 230 V AC Shape; capsule, base G9, R13x50mm, COB 0920 |
|
|

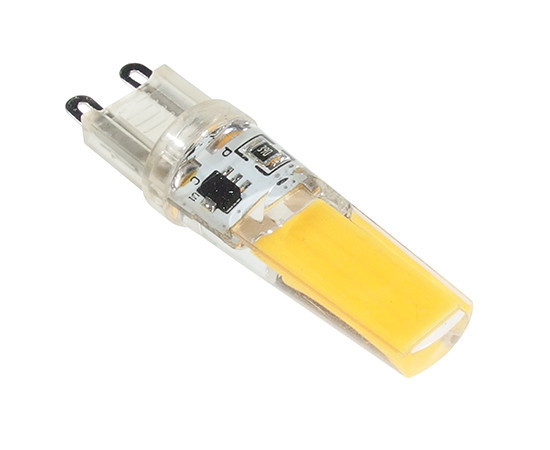

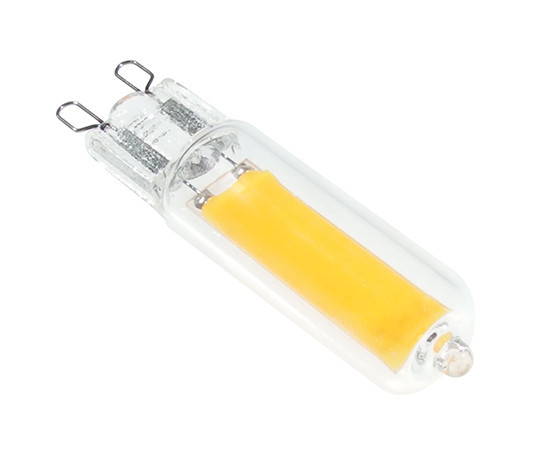

LED 4W (EQ 35W), WW (3000K), 380lm, 360°, 230 V AC Shape; capsule, base G9, R13x62mm, COB 0930 |
|
|
LED 4W (CW 35W), CW (6000K), 380lm, 360°, 230 V AC Shape; capsule, base G9, R13x62mm, COB 0930 |
|
|

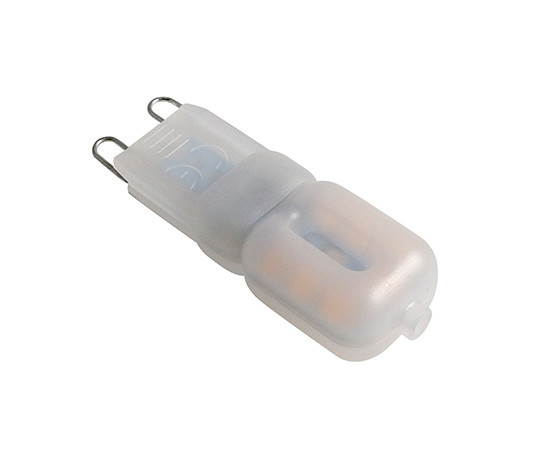

LED bulb 2.5W (equivalent to 20W), warm white (3000K), 200lm, 280°, 230V AC Shape: capsule, 14x SMD2835, base: G9, Ω16×48mm |
|
|
LED bulb 6.0W (equivalent to 45W), warm white (3000K), 550lm, 280°, 230V AC Shape: roller, 75x SMD2835, base: G9, Ω15×60mm |
