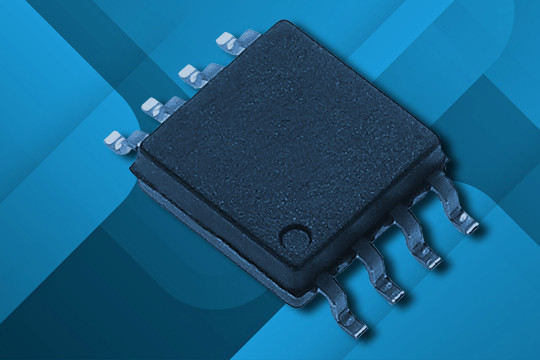

LM293ADR – Speed, Low Power Consumption, and Versatility in One Device

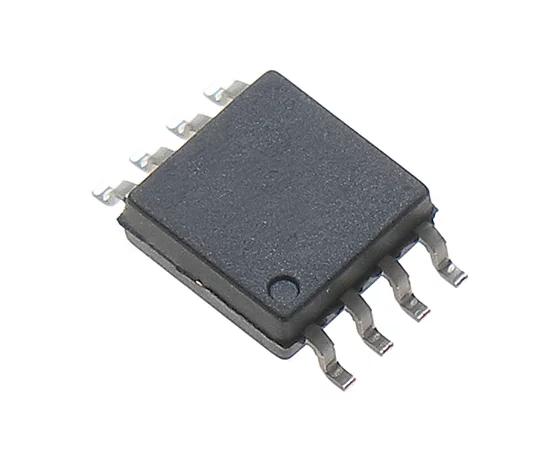

LM293ADR is an integrated circuit manufactured by Texas Instruments, which functions as a voltage comparator. This component is used in applications where it is necessary to compare two voltages and generate an output signal based on the comparison result. The device features low power consumption, high response speed, and strong noise immunity, making it ideal for various applications in both analog and digital electronics.

Key Features of LM293ADR:

1. Supply Voltage – Can operate over a wide supply voltage range, from 2V to 36V (±18V for dual-supply operation).
2. Wide Operating Temperature Range – Functions in a broad temperature range from -25°C to 85°C, allowing use in challenging conditions.
3. Inputs – Includes a non-inverting (positive input) and an inverting input. It compares voltages between these two inputs and generates an appropriate output signal.
4. Output Signal – The output is an open-collector type, meaning it can be connected to an external pull-up resistor to a specified supply voltage. This makes it ideal for applications requiring logical voltage levels or communication with microcontrollers.
5. Low Power Consumption – Features low standby current consumption, making it efficient for battery-powered applications.
6. Very Low Input Bias Current (3.5 nA) – Ideal for applications requiring high input impedance.

Applications:

• Voltage Monitoring Systems – Used in circuits that monitor voltage changes and trigger appropriate responses, such as power protection systems.
• Analog-to-Digital Converters (ADC) – Can be used in circuits that compare voltages before converting them into digital signals.
• Event Detection – For example, in alarm systems where detecting voltage changes is required.
• Logic Level Conversion – Thanks to its open-collector output, it can be used to convert higher voltage levels to levels compatible with digital circuits.

If you want to check current stock levels and prices, click on the product symbol.
