Modern Solutions – Juxing Diodes

The ESD5Z series diodes from Juxing are modern components designed to protect electronic circuits from electrostatic discharges (ESD) and other voltage surges. They are an ideal choice for electronics designers seeking effective protection in devices that require high reliability while minimizing the impact on circuit performance.

Key features of the ESD5Z diodes:

1. Nominal Voltage:  The series includes models optimized for various voltages:

• ESD5Z12V – protection up to 12V.
• ESD5Z6V0 – protection up to 6V.
• ESD5Z5V0 – protection up to 5V.
• ESD5Z3V3 – protection up to 3.3V.
• ESD5Z2V5 – protection up to 2.5V.

With a wide range of voltages, the diodes in this series can be used in various applications, from low-voltage IoT devices to more demanding industrial applications.

2. Low Leakage Current: The minimal leakage current in standby mode ensures high energy efficiency, which is crucial for mobile and battery-powered devices.

3. Very Fast Response Time: These diodes react almost instantaneously to sudden voltage changes, protecting circuits from damage caused by ESD pulses.

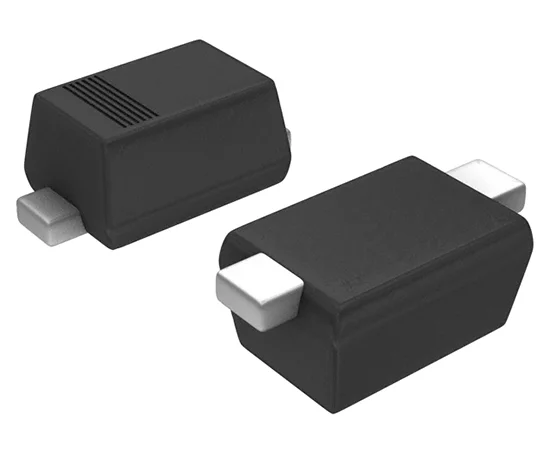

4. Compact Package: Designed for surface mount technology (SMD), the ESD5Z diodes are an ideal solution for modern, miniature electronic devices.

Applications:

• Protection of USB and HDMI ports: Protect against electrostatic discharges in sensitive input/output ports.
• Mobile devices and IoT: Perfect for protecting microcontrollers, sensors, and interfaces in portable devices and smart systems.
• Telecommunications and industrial electronics: Safeguard devices from damage caused by electrostatic discharges in harsh working environments.
• Consumer electronics: Protect delicate circuits in smartphones, laptops, TVs, and other consumer electronics.

The company Micros is an authorized distributor of Juxing products.

If you want to check current stock levels and prices, click on the product symbol.
