Signalling columns and sound signalling devices
Signalling columns and sounders are an integral part of the systems for signalling the operating or production line status.
They are used to communicate the operating status of machines and equipment or simple instructions for their operation. They enable a quick assessment of the state of the production process in a given machine, socket or line and, in an emergency, warn of malfunctions or danger to workers.
We recommend the following signaling columns, together with accessories, as well as ONPOW sounders available in our stock offer:
|
Part No. symbol |
The way of signalization |
Colour |
Supply voltage |
Operating temperature |
Diameter |
|
|
continuous light |
red |
24V AC/DC |
-25...55°C |
40mm |
|
|
continuous light |
red/green |
24V AC/DC |
-25...55°C |
40mm |
|
|
continuous light |
red/yellow/green |
24V AC/DC |
-25...55°C |
40mm |
|
|
buzzer,continuous light |
red/yellow/green |
24V AC/DC |
-25...55°C |
40mm |
|
|
buzzer, continuous light |
red/yellow/green |
24V AC/DC |
-25...55°C |
40mm |
Signalers accessories:
|
Part No. of Micros |
Product name |
Material |
Operating temperature |
|
|
wall mounting element |
metal |
-25...55°C |
|
|
aluminium tube |
aluminium |
-25...55°C |
|
|
aluminium tube |
aluminium |
-25...55°C |
|
|
screw adapter |
plastic |
-25...55°C |
|
|
base |
plastic |
-25...55°C |
|
|
base |
plastic |
-25...55°C |

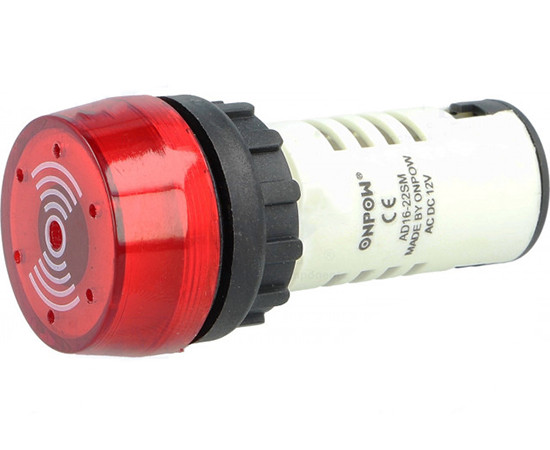

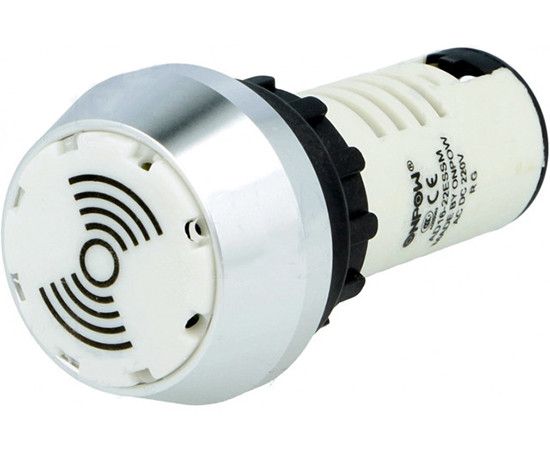

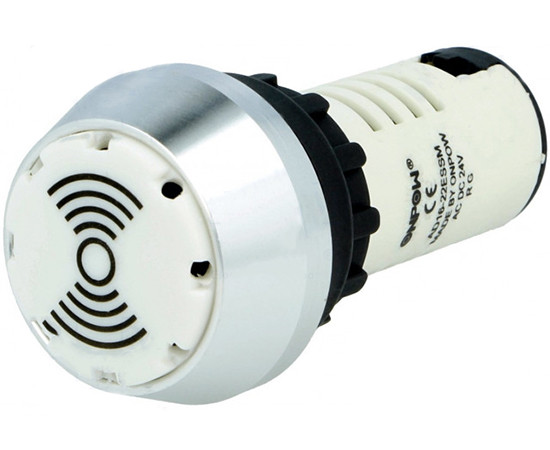

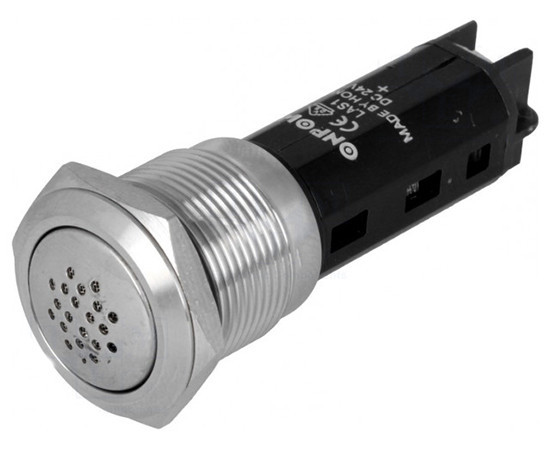

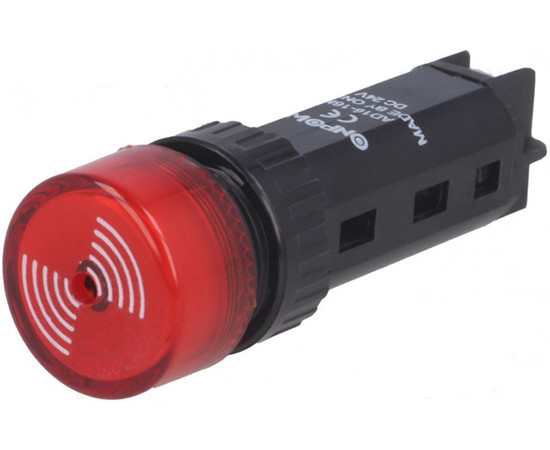

Sound Signalling Devices:
|
Part No. of Micros |
Sound level |
Mounting hole dimensions |
Leads |
Material |
Supply voltage |
|
|
85dB |
16mm |
screw terminals |
stainless steel |
24V DC |
|
|
80dB |
19mm |
screw terminals |
stainless steel |
24V DC |
|
|
80dB |
22mm |
screw terminals |
plastic |
12V DC |
|
|
80dB |
22mm |
screw terminals |
plastic |
24V DC |
|
|
80dB |
22mm |
screw terminals |
plastic |
220V DC |
|
|
80dB |
22mm |
screw terminals |
plastic in metal rim |
24V DC |
|
|
80dB |
22mm |
screw terminals |
plastic in metal rim |
220V DC |
|
|
80dB |
16mm |
for soldering |
plastik |
24V DC |
