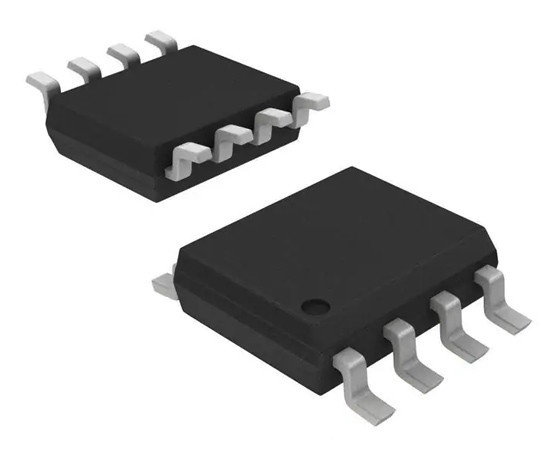

We recommend the reliable microcontroller - ATTINY13A-SSU
2022-01-18
The ATTINY13A-SSU is an 8-bit AVR RISC-based microcontroller. It features a 32B register and a 4-channel, 10-bit A/D converter. The chip achieves up to 20MIPS throughput at 20Mhz (for 1. 8V to 5. 5V values). By executing instructions in a single clock cycle, this ATtiny13A achieves throughputs as high as 1MIPS per MHz, allowing power consumption to be optimized with respect to processing speed. The AVR core is a combination of a rich instruction set and 32 general-purpose registers. All 32 registers are directly connected to the arithmetic logic unit (ALU), allowing access to two independent registers in a single instruction executed in a single clock cycle. The resulting architecture is more code efficient, achieving throughput up to 10x faster than conventional CISC microcontrollers.
|
MANUFACTURER'S SYMBOL
|
DESCRIPTION |
|---|---|
|
|
1kB-FL 64B-RAM 64B-EE 6I/O 1.8÷5.5V 20MHz 1xtimer 4A/D -40÷85°C Replacement for: ATTINY13-20SSU, ATTINY13V-10SSU, ATTINY13A-SSUR |
| PARAMETERS | |
|---|---|
| Producer: | MICROCHIP |
| Architecture: | 8-bit |
| FLASH memory: | 1kB |
| RAM memory: | 64B |
| EEPROM memory: | 64B |
| Number of I/O: | 6 |
| Supply voltage range: | 1,8V~5,5V |
