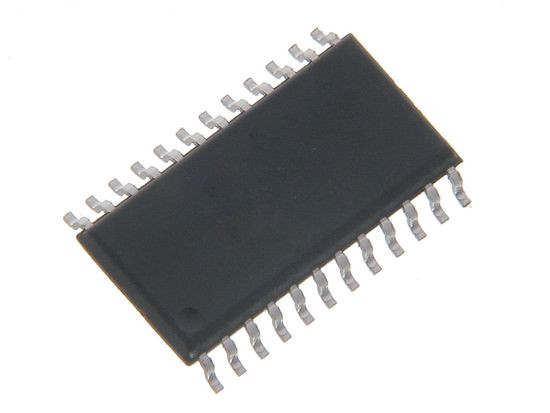

PCF8575CDW Texas Instruments

Symbol Micros: 8575CDW

97876

8575CDW

Contractor Symbol:

Case : SOIC24

Datasheet

Technical drawing Add to favourites

16-bit I/O Expander w/ Interrupt, I2C, 400kHz, 4.5÷5.5V, -40÷85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Supply voltage range:	4,5V~5,5V
Manufacturer:	Texas Instruments
Number of I/O:	16
Interface:	I2C
Type of output:	Open Drain
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: PCF8575CDW RoHS Case style: SOIC24 Datasheet

In stock:

6 pcs.

Quantity of pcs.	1+	5+	25+	100+	200+
Net price (EUR)	3,4898	2,7928	2,4914	2,3764	2,3419

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/100 Quantity (multiple: 1)

- +

• Parameters

Supply voltage range:	4,5V~5,5V
Manufacturer:	Texas Instruments
Number of I/O:	16
Interface:	I2C
Type of output:	Open Drain
Operating temperature (range):	-40°C ~ 85°C
