TS-41-3-3 Mart
Symbol Micros:
AD TS-41-3-3
Case : Rys.TS-41
Twilight switch TS-41-3-3 16A 230VAC; SPDT; IP20; -25÷50°C
Parameters
Type of output: | SPDT |
Operating temperature (range): | -25°C ~ 50°C |
Manufacturer: | Mart |
Supply voltage: | 230V |
Module type: | Twilight switch |
Operating current: | 16A |
Type of output: | SPDT |
Operating temperature (range): | -25°C ~ 50°C |
Manufacturer: | Mart |
Supply voltage: | 230V |
Module type: | Twilight switch |
Operating current: | 16A |
Detailed description

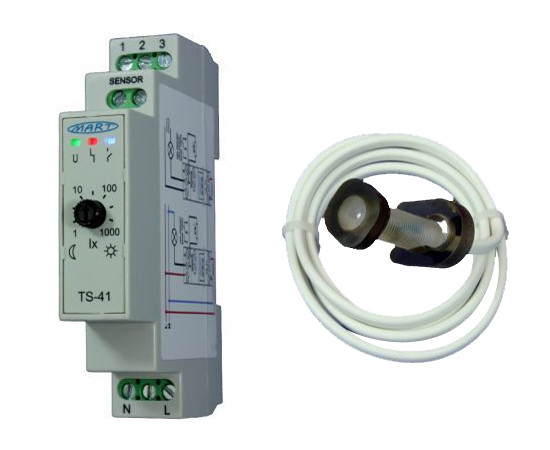

TS-41-3.3 Twilight Switch is designed for automatically switching on a device at dusk and switching it off at dawn, or vice versa (NO, NC contacts). The AUTOMATIC SWITCH includes:
- CONTROLLER TS-41 - mounted in a distribution box on a 35 mm rail (one module, 18 mm),
- EXTERNAL SENSOR in a box (IP65) designed for wall or other vertical surface installation using two screws.
The length of the wires connecting the TS-41 CONTROLLER can be up to 100 m. (for wires with a cross-section of 2 x 0.5 mm or thicker).
