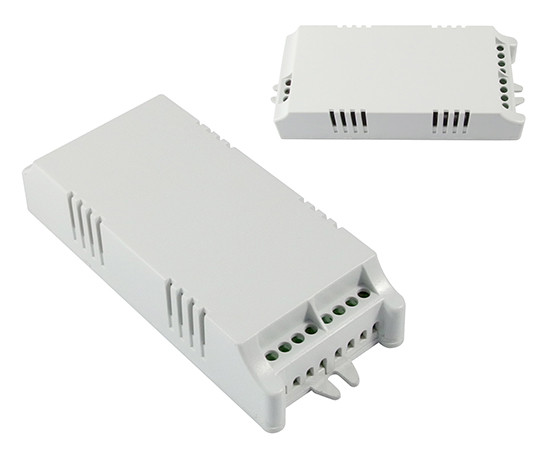

Relay receiver RF  YET404PC-220V

The four-channel relay receiver is ideal for 0/1 control of devices such as:

• lighting,
• gates and garage doors,
• electrical sockets,
• window blinds,
• electrical actuators.

The device can be paired simultaneously with multiple remotes with different codes.

The device is also customizable to user needs. Function switching is done by setting the jumper to one of the 3 positions:

• Position 1: Signal switch, i.e., turning the relay on and off with a single button,
• Position 2: Latching operation, i.e., turning the relay on and off with two buttons, with only one relay active at any given time,
• Position 1 and 2: Two relays in signal switch mode and two in momentary mode,
• No jumper: Momentary operation.

Adding new remotes is done by pressing the "learning button". The full user manual is available in the product datasheet.

Technical Specifications:

• Power Supply: 220V,
• Radio Frequency: 433 MHz,
• Number of Channels: 4,
• Current Consumption: ≤9 mA,
• Contact Switching Current: ≤10 A,
• Operating Temperature: -40 to 80 ℃,
• Remote Memory: 30 (learning & fixed code), 6 (rolling code),
• Dimensions: 74.5×54.5×27 mm

We have dedicated remotes for this receiver in our store. You can find them below:

RF REMOTE YET019
RF REMOTE YET51D

The device is compatible with the Broadlink RM2 Pro central unit. The link to it is below:

Broadlink RM2 PRO
