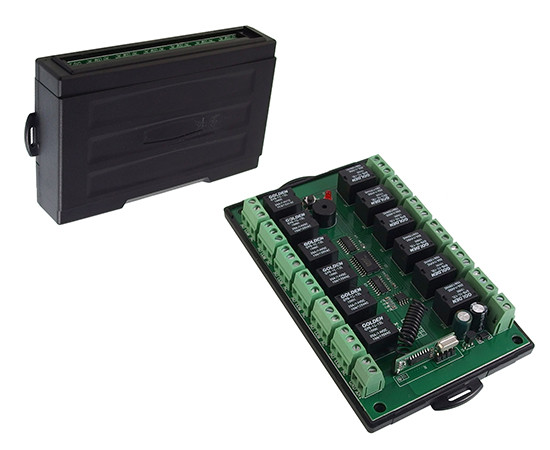

YET412PCX

The twelve-channel relay receiver is ideal for 0/1 control of devices such as:

• lighting,
• gates and garage doors,
• electrical sockets,
• window blinds,
• electrical actuators,
• industrial machines.

The device can be paired simultaneously with multiple remotes with different codes.


The device is also customizable to user needs. Programming functions is done by pressing the remote button several times in learning mode:

• 1 press: momentary operation,
• 2 presses: signal switch, i.e., turning the relay on and off with a single button,
• 3 presses: latching operation, i.e., turning the relay on and off with two buttons, with only one relay active at any given time,
• 4 presses: six relays in signal switch mode and six in momentary mode,

Adding new remotes is done by pressing the "learning button". The full user manual is available in the product datasheet.

Technical Specifications:

• Power Supply: 12 V, also available in 24 V,
• Radio Frequency: 433 MHz,
• Number of Channels: 12,
• Current Consumption: ≤9 mA,
• Contact Switching Current: ≤10 A,
• Operating Temperature: -40 to 80 ℃,
• Remote Memory: 80 learning code,
• Dimensions: 143×92×31 mm

We have dedicated remotes for this receiver in our store. You can find them below:
RF REMOTE YET112D

The device is compatible with the Broadlink RM2 Pro central unit. The link to it is below:

Broadlink RM2 PRO
