A000005 Arduino Nano
Symbol Micros:
ARDUINO Nano
Case : Rys.ArduinoNano
Arduino module based on the AVR ATmega328 MCU; 32kB-FLASH (2kB bootloader); 2kB-SRAM; 1kB-EE; 16MHz; 7V~12V; 22xI/O (6xPWM); 8 A/D; 45x18mm;
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Dimensions: | 45x18mm |
| Microcontroller: | ATmega328 |
| Number of I/O: | 22 |
| Supply voltage: | 7V~12V |
| Interface: | UART/SPI/I2C/USB |
| RAM memory: | 2kB |
| EEPROM memory: | 1kB |
| Dimensions: | 45x18mm |
| Microcontroller: | ATmega328 |
| Number of I/O: | 22 |
| Supply voltage: | 7V~12V |
| Interface: | UART/SPI/I2C/USB |
| RAM memory: | 2kB |
| EEPROM memory: | 1kB |
| FLASH memory: | 32kB |
| Frequency: | 16,000MHz |
Detailed description

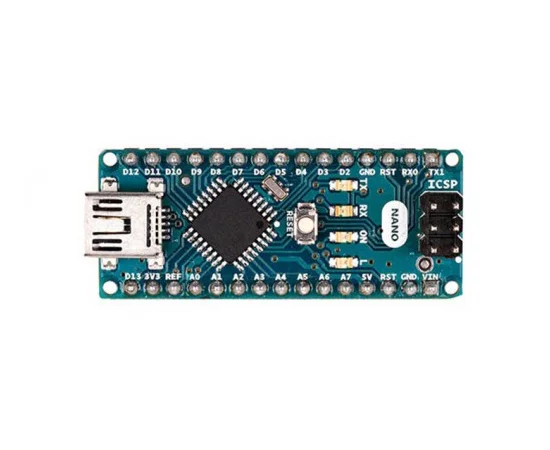

The NANO board is similar to the UNO model in terms of capabilities, as it features the same microcontroller but in a smaller package. The ATmega328 chip is soldered onto the board, which has smaller dimensions and a very low weight. It does not have a separate power jack and requires a Mini-B USB cable. The numerous board pins are arranged so that the module can be easily mounted on breadboards. However, its smaller size makes it easier to fit into embedded systems with very limited space.
Technical Specifications:
| Microcontroller | ATmega328 |
| Operating Voltage Level | 5 V |
| Recommended Power Supply Voltage | 7 ~ 12 V |
| Acceptable Power Supply Voltage | N/A |
| Digital I/O Pins | 22 |
| PWM Outputs | 6 |
| Analog Inputs | 8 |
| Maximum DC Current per I/O Pin | 40 mA |
| Maximum Current for 3.3V I/O Pins | N/A |
| Flash Memory | 32 kB |
| Flash Memory Available for User | 30 kB |
| SRAM | 2 kB |
| EEPROM | 1 kB |
| Clock Speed | 16 MHz |
| Dimensions [mm] | 45 x 18 |
| Weight | 7 g |
