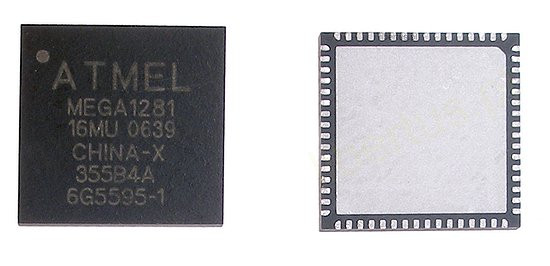

ATMEGA1281-16MU
Symbol Micros:
ATM1281-16mu
Case : MLF64
128kB-FL 8kB-RAM 4kB-EE 54I/O 2.7÷5.5V 16MHz 6xtimer 8A/D 2UART SPI TWI -40÷85°C
Parameters
| Manufacturer: | MICROCHIP |
| Architecture: | 8-bit |
| FLASH memory: | 128kB |
| RAM memory: | 8kB |
| EEPROM memory: | 4kB |
| Number of I/O: | 54 |
| Supply voltage range: | 2,7V~5,5V |
| Manufacturer: | MICROCHIP |
| Architecture: | 8-bit |
| FLASH memory: | 128kB |
| RAM memory: | 8kB |
| EEPROM memory: | 4kB |
| Number of I/O: | 54 |
| Supply voltage range: | 2,7V~5,5V |
| Frequency: | 16,000MHz |
| ADC: | YES |
| DAC: | NO |
| UART/USART interface: | YES |
| SPI interface: | YES |
| TWI (I2C) interface: | YES |
| CAN interface: | NO |
| ETHERNET interface: | NO |
| USB interface: | NO |
| Encryption: | NO |
| Operating temperature (range): | -40°C ~ 85°C |
| Case: | MLF64 |
Detailed description
Manufacturer: Atmel
Family: Embedded – Microcontrollers
Series: AVR® ATmega
Processor: AVR
Architecture: 8-Bit
Frequency: 16MHz
Interface: EBI/EMI, I²C, SPI, USART
Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O Pins: 54
Memory Capacity: 128KB (64K x 16)
Memory Type: FLASH
RAM Capacity: 8K x 8
Operating Voltage: 2.7 V ~ 5.5 V
Oscillator Type: Internal
Operating Temperature: -40°C ~ 85°C
Package: QFN64
