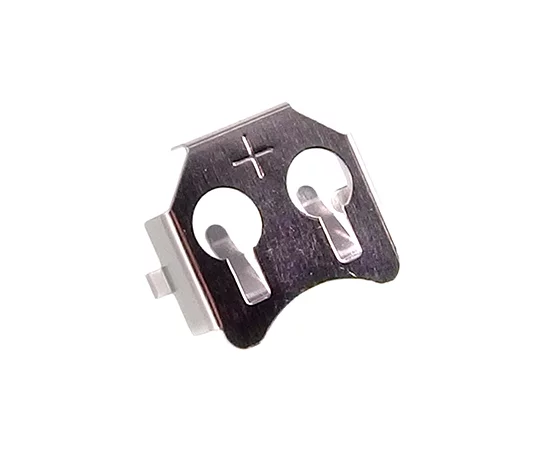

3001 Keystone Battery clip

Symbol Micros: BATKEYS3001

82683

BATKEYS3001

Contractor Symbol:

Case : Rys.KEYS3001

Datasheet

Technical drawing Add to favourites

Battery clip for; BR1220; BR1225; CL1220; CR1216; CR1220; mounting: PCB; number of batteries: 1; battery diameter: 12mm; length: 13,21mm; width: 12,07; height: 5,34mm

Product description

Parameters

Lenght:	13,21mm
Height:	5,34mm
Width:	12,07mm
Diameter:	12mm
Cell count:	1
Manufacturer:	Keystone
Mounting:	PCB

All parameters

Manufacturer:: KEYSTONE Manufacturer part number: P/N3001 RoHS Case style: Rys.KEYS3001 Datasheet

In stock:

90 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,4814	0,2888	0,2219	0,1998	0,1928

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters
• Description

Lenght:	13,21mm
Height:	5,34mm
Width:	12,07mm
Diameter:	12mm
Cell count:	1
Manufacturer:	Keystone
Mounting:	PCB
Leads:	N/A
Cable length:	N/A

Detailed description

Type: Battery clip Keystone 3001

Model: Keystone P/N3001

No. of batteries:1 pc

Battery diameter: 12mm Height: 3 mm

Battery size: BR1216, CR1216, BR1220, CL1220, CR1220, BR1225

Material: Phosphor-bronze

Mounting: THT
