3101.0015 Schurter Holder

Symbol Micros: Bu3101.0015

105708

Bu3101.0015

Contractor Symbol:

Case : Rys.3101.0015

Datasheet

Technical drawing Add to favourites

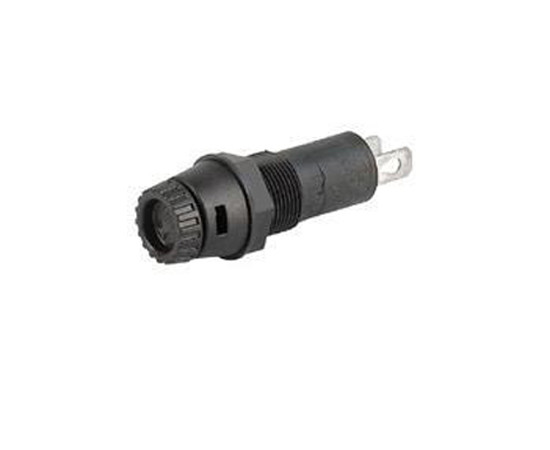

Fuse holder; 5x20mm; 10A; 250V; r=7,62mm; on panel; black; dimensions: 15x46,5mm; associated items: Bu3101.0010

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	15x46,5mm
Terminal pitch:	7,62mm
Current:	10A
Fuse size:	5x20mm
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black

All parameters

Manufacturer:: Schurter Manufacturer part number: 3101.0015 RoHS Case style: Rys.3101.0015 Datasheet

In stock:

87 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,9238	1,4282	1,2473	1,1604	1,1322

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

Manufacturer:: Schurter Manufacturer part number: 3101.0015 Case style: Rys.3101.0015

External warehouse:

790 pcs.

Quantity of pcs.	10+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,1925

Add to comparison tool Add inquiry (RFQ)

Packaging:
10

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	15x46,5mm
Terminal pitch:	7,62mm
Current:	10A
Fuse size:	5x20mm
Operating voltage:	250V
Accessories type:	Socket
Colour:	Black
Manufacturer:	SCHURTER
Mounting:	On panel
