CH Top-AC-81/N-100
| Capacity [ml]: | 100ml |
| Product type C: | Rosin-free flux |
| Type: | Liquid |
| Type of packaging: | Can |
| Manufacturer: | AG Termopasty |
| Capacity [ml]: | 100ml |
| Product type C: | Rosin-free flux |
| Type: | Liquid |
| Type of packaging: | Can |
| Manufacturer: | AG Termopasty |

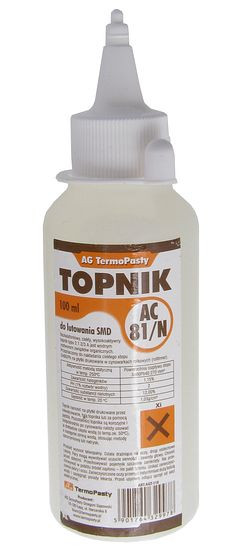

Flux AC-81/N 100ml
Non-rosin, liquid, highly active FLUX TYPE 2.1.2/3 A is an aqueous solution of organic compounds. Designed for applying a thin layer of Sn60/Pb solder on printed circuit boards using roller tinning machines (rolltinner).
Properties:
-
Appearance: transparent liquid
Odor: mild, glycerine-like
Water solubility: complete
Boiling point: 97-105°C
Static activity at 250°C
Halide content: 1.15%
pH (1% aqueous solution): 2
Non-volatile content: 12 %
Density at temp. 1.03 g/cm³
Instructions for use (Application):
Apply the flux to the printed circuit boards by roller coating, flux wave, or using a brush. The flux residues are corrosive, and immediately after soldering, they should be removed thoroughly with warm water (at approx. 50°C) and then with cold water, using either immersion or spraying methods.
