CH Top-AG5-100
Symbol Micros:
CH Top-AG5-100
Case : Rys.CH Top-AG5-100
liquid non-rosin medium active flux, bottle 100ml to high temperature (300-400°C) tinning and soldering
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Capacity [ml]: | 100ml |
| Name: | AG5 |
| Product type C: | Rosin-free flux |
| Manufacturer: | AG Termopasty |
| Type: | Liquid |
| Type of packaging: | Bottle |
| Capacity [ml]: | 100ml |
| Name: | AG5 |
| Product type C: | Rosin-free flux |
| Manufacturer: | AG Termopasty |
| Type: | Liquid |
| Type of packaging: | Bottle |
Detailed description

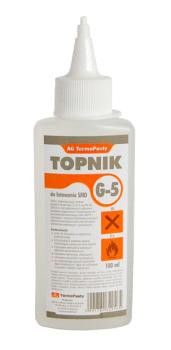

Flux AG 5 (Flux G-5) 100ml
Purpose: liquid, non-rosin, medium-active flux type 2.2.3 A according to ISO 9454-1, which is an alcoholic solution of organic compounds. Designed for high-temperature (300-400°C) soldering and brazing of elements covered with polyurethane varnishes and for soldering of silver-plated and tin-plated components.
Properties:
-
Flux base: alcoholic
Appearance: transparent liquid
Odor: sharp alcoholic
Water solubility: partial, clouds in cold water
Other solvents: most organic solvents
Static activity at 250°C: greater than Sn60Pb40 solder flow 135 mm2
Halide content: 0 %
pH (1% aqueous solution): 6.4
Non-volatile content: 19 %
Density at 20°C: 0.86 g/cm3
Usage Instructions:
-
Apply flux to the soldered and brazed components using any available methods. It is recommended to remove the residues with ethyl alcohol or isopropyl alcohol.
