CH Top-TK83-100
Symbol Micros:
CH Top-TK83-100
Case : Rys.CH Top-TK83-100
liquid medium active flux, bottle 100ml, max soldering temperature 280°C for manual tinning to restore solderability
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
| Capacity [ml]: | 100ml |
| Name: | TK83 |
| Product type C: | Rosin flux |
| Manufacturer: | AG Termopasty |
| Type: | Liquid |
| Type of packaging: | Bottle |
| Capacity [ml]: | 100ml |
| Name: | TK83 |
| Product type C: | Rosin flux |
| Manufacturer: | AG Termopasty |
| Type: | Liquid |
| Type of packaging: | Bottle |
Detailed description

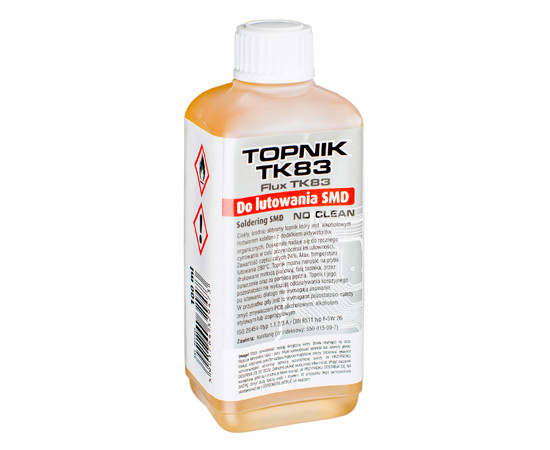

Flux TK83 100ml
Liquid, medium-activity flux type 1.1.2/3 A according to ISO 9454-1, alcoholic solution of rosin with the addition of organic activators, maximum soldering temperature 280°C. Total content of solids 24%.
Perfectly suitable for manual tinning to restore solderability.
Properties:
-
Appearance: dark amber liquid
Smell: alcoholic - resinous
Solubility in water: cloudy, only the carrier is soluble
Activator: insoluble
Other solvents: most organic solvents
Static activity at 250°C: flowing area of Sn60Pb40 solder 250 mm2
Halogen content: 0.06%
Non-volatile substance content: 24%
Density at 20°C: 0.86 g/cm3
Usage instructions:
Flux can be applied to printed circuit boards by foam application, flux wave, immersion, or by using a brush. Flux and its residues do not exhibit corrosive effects after soldering, so they do not need to be removed. If removal is required, residues should be washed off with PCB cleaner, ethyl alcohol, or isopropyl alcohol.
