CP1-149NS

Symbol Micros: CZ CP1-149NS

296606

CZ CP1-149NS

Contractor Symbol:

Case : Rys.CP1-149NS

Datasheet

Technical drawing Add to favourites

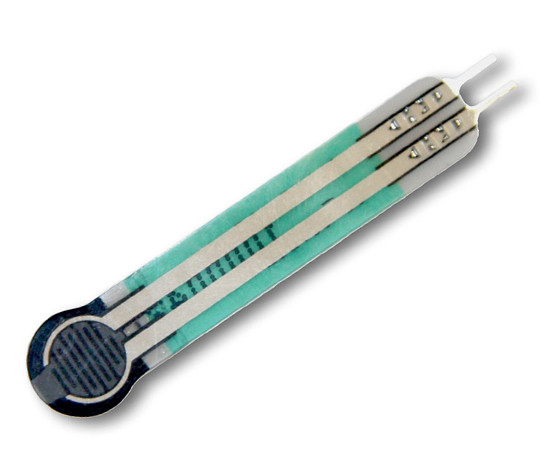

Pressure sensor, resistive, detection area: circular ⌀=6mm Resistance: 1MΩ>RL>2kΩ @ 0.5÷100N/cm2, voltage: 1÷5V, temperature: -40÷85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	38x8mm
Measurment range:	Round, 6mm diameter
Manufacturer:	IEE
Measurement range:	0.5~100N/cm2
Nominal voltage:	1V ~ 5V
Self-adhesive:	NO
Sensor type:	Resistance

All parameters

Manufacturer:: IEE Manufacturer part number: CP1-149NS RoHS Case style: Rys.CP1-149NS Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	20+	50+
Net price (EUR)	7,2350	6,7749	6,4874	6,3839	6,2918

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	38x8mm
Measurment range:	Round, 6mm diameter
Manufacturer:	IEE
Measurement range:	0.5~100N/cm2
Nominal voltage:	1V ~ 5V
Self-adhesive:	NO
Sensor type:	Resistance
Operating temperature (range):	-40°C ~ 85°C
