CP45-154NS

Symbol Micros: CZ CP45-154NS

296610

CZ CP45-154NS

Contractor Symbol:

Case : Rys.CP45-154NS

Datasheet

Technical drawing Add to favourites

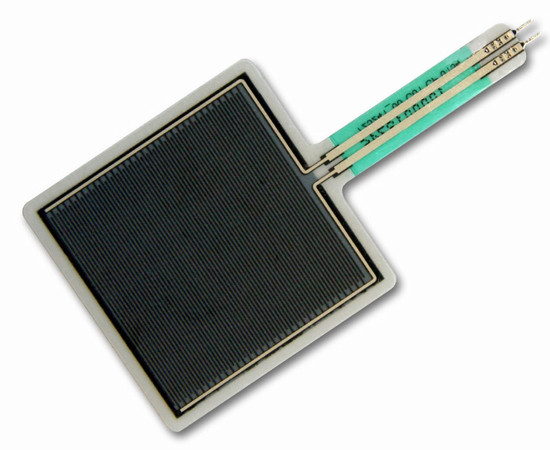

Pressure sensor, resistive, detection area: 40.6×40.3mm Resistance: 1MΩ>RL>2kΩ @ 0.5÷100N/cm2, voltage: 1÷5V, temperature: -40÷85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	85x46mm
Measurment range:	40.6x40,3mm
Manufacturer:	IEE
Measurement range:	0.5~100N/cm2
Nominal voltage:	1V ~ 5V
Self-adhesive:	NO
Sensor type:	Resistance

All parameters

Manufacturer:: IEE Manufacturer part number: CP45-154NS RoHS Case style: Rys.CP45-154NS Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	3+	6+	12+	30+
Net price (EUR)	13,6991	13,0767	12,8183	12,6280	12,4542

Add to comparison tool Add inquiry (RFQ)

Packaging:
6 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	85x46mm
Measurment range:	40.6x40,3mm
Manufacturer:	IEE
Measurement range:	0.5~100N/cm2
Nominal voltage:	1V ~ 5V
Self-adhesive:	NO
Sensor type:	Resistance
Operating temperature (range):	-40°C ~ 85°C
