LM12-3002PC

Symbol Micros: CZ LM12-3002PC
Contractor Symbol:
Case : Rys.LM12-3002PC
Technical drawing Add to favourites

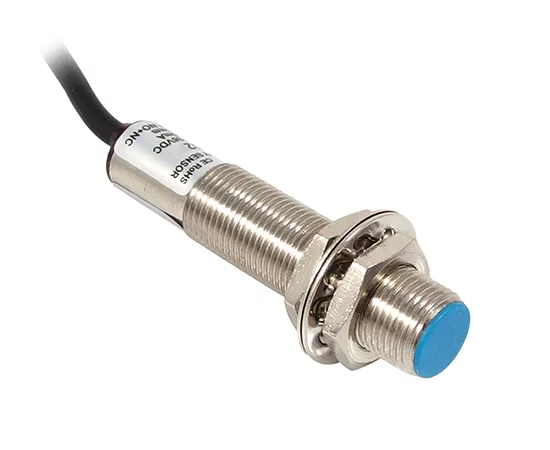

Inductive sensor; range: 0÷2mm; PNP/NO+NC; 10÷30VDC; M12, cylindrical; wire: 2m; 200mA; operating temperature: -25°C÷75°C; metal; IP67
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
Output configuration: PNP/NO+NC
Range: 0÷2mm
Sensor case: M12, Cylindrical
Supply voltage: 10÷30VDC
Case material: Metal
Connection: Lead 2m
IP rating: IP67


Item available on request
Output configuration: PNP/NO+NC
Range: 0÷2mm
Sensor case: M12, Cylindrical
Supply voltage: 10÷30VDC
Case material: Metal
Connection: Lead 2m
IP rating: IP67
Operating current: 200mA
Operating temperature (range): -25°C ~ 75°C
Sensor type: Inductive
Detailed description

Category: inductive sensor Output: PNP/NO+NC Detection distance: 2mm Dimensions: 12x58mm Mounting method: flush Operating voltage: 6~36 VDC Shell material: cylindrical metal Mounting: wire 2m Sealing: IP67 Output current.: 200mA Consumption current: DC<15mA Operating temperature: -25°C ~ 55°C
