LM12-3004NC

Symbol Micros: CZ LM12-3004NC
Contractor Symbol:
Case : Rys.LM12-3004NC
Technical drawing Add to favourites

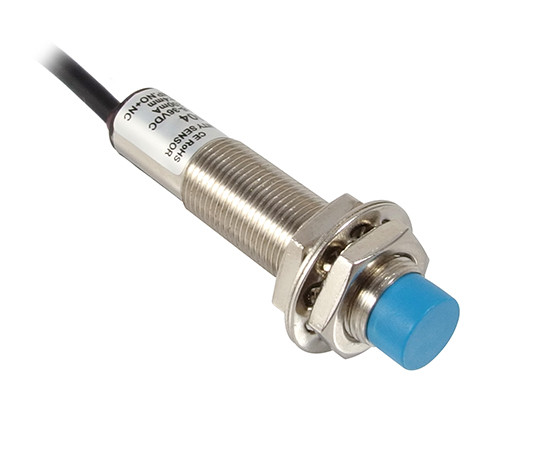

Inductive sensor; range: 0÷4mm; NPN/NO+NC; 10÷30VDC; M12, cylindrical; wire: 2m; 200mA; operating temperature: -25°C÷75°C; metal; IP67
Parameters
Output configuration: NPN/NO+NC
Range: 0÷4mm
Sensor case: M12, Cylindrical
Supply voltage: 10÷30VDC
Connection: Lead 2m
Case material: Metal
Operating temperature (range): -25°C ~ 75°C
Manufacturer:: JSP Manufacturer part number: LM12-3004NC RoHS Case style: Rys.LM12-3004NC Datasheet
In stock:
40 pcs.
Quantity of pcs. 1+ 4+ 20+ 40+ 100+
Net price (EUR) 6,9807 6,3312 5,9748 5,8904 5,8177
Add to comparison tool
Packaging:
4
Output configuration: NPN/NO+NC
Range: 0÷4mm
Sensor case: M12, Cylindrical
Supply voltage: 10÷30VDC
Connection: Lead 2m
Case material: Metal
Operating temperature (range): -25°C ~ 75°C
IP rating: IP67
Operating current: 200mA
Sensor type: Inductive
Detailed description

Category: inductive sensor Output: NPN/NO+NC Detection distance: 4mm Dimensions: 12x58mm Mounting method: non-flush Operating voltage: 6~36 VDC Shell material: cylindrical metal Mounting: wire 2m Sealing: IP67 Output current.: 200mA Consumption current: DC<15mA Operating temperature: -25°C ~ 55°C
