SM12-31010PB

Symbol Micros: CZ SM12-31010PB
Contractor Symbol:
Case : Rys.SM12-31010
Technical drawing Add to favourites

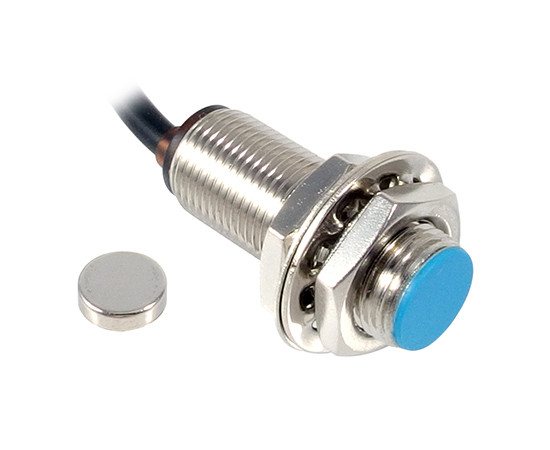

Hall sensor; with magnet; range: 0÷10mm; PNP/NC; 5÷24VDC; M12, cylindrical; wire: 2m; 8mA; operating temperature: -25°C÷70°C; metal; IP67
Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437
Parameters
Output configuration: PNP/NC
Operating temperature (range): -25°C ~ 70°C
Sensor case: M12, Cylindrical
Sensor type: Hall effect
Connection: Lead 2m
Operating current: 8mA
Range: 0÷10mm


Item available on request
Output configuration: PNP/NC
Operating temperature (range): -25°C ~ 70°C
Sensor case: M12, Cylindrical
Sensor type: Hall effect
Connection: Lead 2m
Operating current: 8mA
Range: 0÷10mm
Supply voltage: 5÷24VDC
Case material: Metal
IP rating: IP67
Detailed description

Category: hall sensor Output: PNP/NC Detection distance: 0-10mm Dimensions: 12x35mm Mounting method: flush Operating voltage: 5~24 VDC Shell material: cylindrical metal Mounting: wire 2m Sealing: IP67 Consumption current: DC<8mA Operating temperature: -25°C ~ 70°C

Magnet in set, sensor does not react on metals.
