SM18-31010NB

Symbol Micros: CZ SM18-31010NB

130380

CZ SM18-31010NB

Contractor Symbol:

Case : Rys.SM18-31010NB

Datasheet

Technical drawing Add to favourites

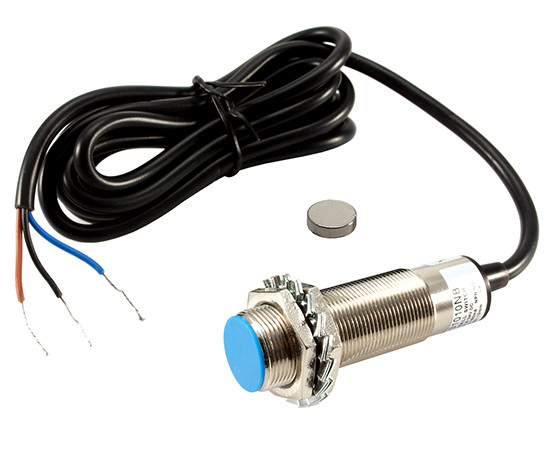

Hall sensor; with magnet; range: 0÷10mm; NPN/NC; 5÷24VDC; M18, cylindrical; wire: 2m; 8mA; operating temperature: -25°C÷70°C; metal; IP67

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Output configuration:	NPN/NC
Operating temperature (range):	-25°C ~ 70°C
Sensor case:	M18, Cylindrical
Sensor type:	Hall effect
Connection:	Lead 2m
Operating current:	8mA
Range:	0÷10mm

All parameters

Manufacturer:: JSP Manufacturer part number: SM18-31010NB RoHS Case style: Rys.SM18-31010NB Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	2+	10+	30+	100+
Net price (EUR)	4,7321	4,3663	3,8901	3,7337	3,6394

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Output configuration:	NPN/NC
Operating temperature (range):	-25°C ~ 70°C
Sensor case:	M18, Cylindrical
Sensor type:	Hall effect
Connection:	Lead 2m
Operating current:	8mA
Range:	0÷10mm
Supply voltage:	5÷24VDC
Case material:	Metal
IP rating:	IP67
