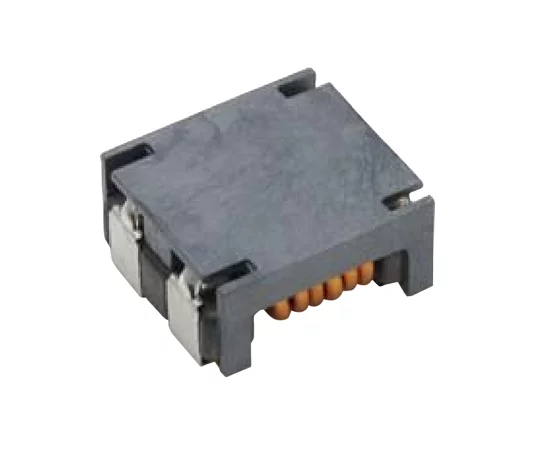

ACM12V-701-2PL-TL00 TDK Anti-interference filter

Symbol Micros: D ACM12V-701-2PL-TL00

96329

D ACM12V-701-2PL-TL00

Contractor Symbol:

Case : Rys.ACM12V

Datasheet

Technical drawing Add to favourites

Filter: anti-interference: 700R (100MHz); 8A; 6mR; 80VDC; SMD 4844; dimensions: 12x11x6mm; operating temperature: -40°C~85°C

Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	4844
Operating voltage:	80V
Current:	8A
Dimensions:	12x11x6mm
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: TDK Manufacturer part number: ACM12V-701-2PL-TL00 Case style: Rys.ACM12V

External warehouse:

25000 pcs.

Quantity of pcs.	500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,6484

Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: TDK Manufacturer part number: ACM12V-701-2PL-TL00 Case style: Rys.ACM12V

External warehouse:

10500 pcs.

Quantity of pcs.	500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,8922

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	4844
Operating voltage:	80V
Current:	8A
Dimensions:	12x11x6mm
Operating temperature (range):	-40°C ~ 85°C
Impedance:	700Ohm
