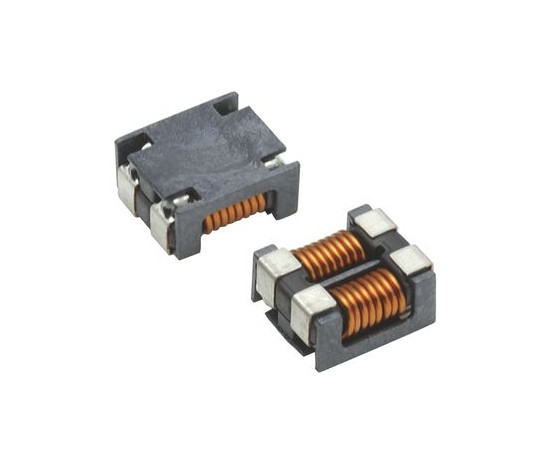

ACM70V-701-2PL-TL00 TDK Anti-interference filter

Symbol Micros: D ACM70V-701-2PL-TL00

119024

D ACM70V-701-2PL-TL00

Contractor Symbol:

Case : Rys.ACM70V

Datasheet

Technical drawing Add to favourites

Filter: anti-interference: 700R (100MHz); 4A; 15mR; 80VDC; SMD 2824; dimensions: 7x6x3.5mm; operating temperature: -40°C~125°C

Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	2824
Operating voltage:	80V
Current:	4A
Dimensions:	7x6x3.5mm
Operating temperature (range):	-40°C ~ 125°C

All parameters

Manufacturer:: TDK Manufacturer part number: ACM70V-701-2PL-TL00 RoHS Case style: Rys.ACM70V Datasheet

In stock:

23 pcs.

Quantity of pcs.	1+	3+	10+	40+	154+
Net price (EUR)	1,6473	1,3102	1,1189	1,0137	0,9683

Add inquiry (RFQ)

Packaging:
154 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	2824
Operating voltage:	80V
Current:	4A
Dimensions:	7x6x3.5mm
Operating temperature (range):	-40°C ~ 125°C
Impedance:	700Ohm
