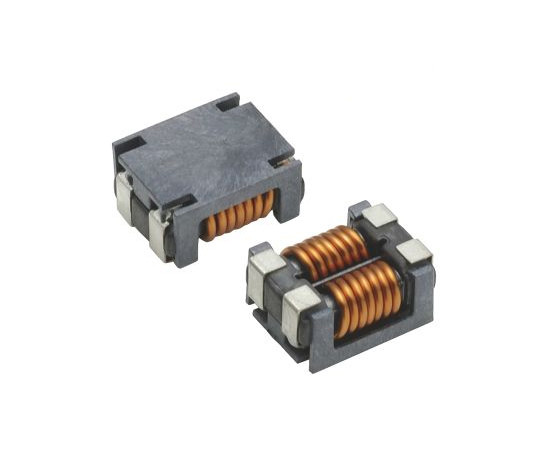

ACM90V-701-2PL-TL00 TDK Anti-interference filter

Symbol Micros: D ACM90V-701-2PL-TL00

119026

D ACM90V-701-2PL-TL00

Contractor Symbol:

Case : Rys.ACM90V

Datasheet

Technical drawing Add to favourites

Filter: anti-interference: 700R (100MHz); 5A; 10mR; 80VDC; SMD 0907; dimensions: 9x7x4.5mm; operating temperature: -40°C~125°C

Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	0907
Operating voltage:	80V
Current:	5A
Dimensions:	9x7x4.5mm
Operating temperature (range):	-40°C ~ 125°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	TDK
Mounting:	SMD
Case:	0907
Operating voltage:	80V
Current:	5A
Dimensions:	9x7x4.5mm
Operating temperature (range):	-40°C ~ 125°C
Impedance:	700Ohm
