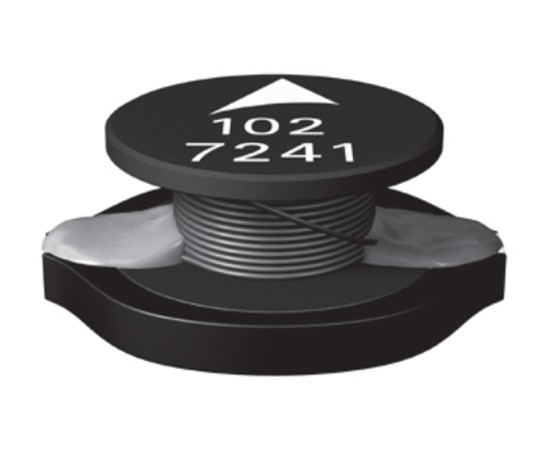

B82479A1223M000 TDK Power inductor

Symbol Micros: D B82479A1223M000

498942

D B82479A1223M000

Contractor Symbol:

Case : Rys.B82479A

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 22uH; 20%; current: 3.5A; resistance: 0.047R; dimensions: 18.54x15.24x7.11mm; operating temperature: -55°C ~ 150°C

Parameters

Dimensions:	18.54x15.24x7.11mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	TDK
Mounting:	SMD
Current:	3,5A
Resistance:	0,047 Ohm

All parameters

Manufacturer:: EPCOS Manufacturer part number: B82479A1223M000 Case style: Rys.B82479A

External warehouse:

14750 pcs.

Quantity of pcs.	500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,4532

Add to comparison tool Add inquiry (RFQ)

Packaging:
250

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	18.54x15.24x7.11mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	TDK
Mounting:	SMD
Current:	3,5A
Resistance:	0,047 Ohm
Operating temperature (range):	-55°C ~ 150°C
Tolerance:	20%
