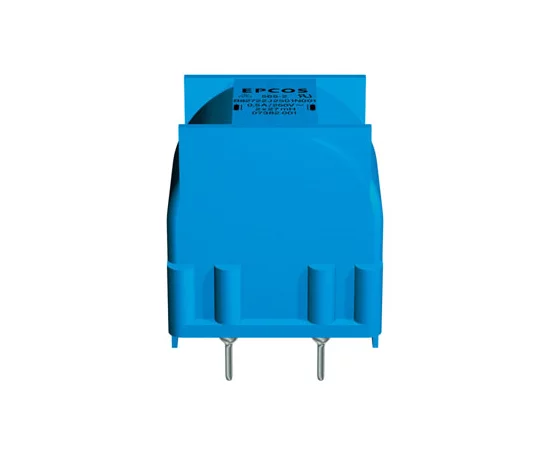

B82722J2302N001 TDK Power inductor

Symbol Micros: D B82722j2302n1

308246

D B82722j2302n1

Contractor Symbol:

Case : Rys.B82722J

Datasheet

Technical drawing Add to favourites

Power inductor; THT; 1.2mH; 30%; 3A; 56mR; dimensions: 16.1x23.3x25.4mm; operating temperature: -40°C~125°C

Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	THT
Inductance:	1,2mH
Current:	3A
Resistance:	0,056 Ohm
Tolerance:	30%

All parameters

Manufacturer:: EPCOS Manufacturer part number: B82722J2302N001 Case style: Rys.B82722J

External warehouse:

3783 pcs.

Quantity of pcs.	540+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,7670

Add to comparison tool Add inquiry (RFQ)

Packaging:
540

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: TDK Manufacturer part number: B82722J2302N1 Case style: Rys.B82722J

External warehouse:

5400 pcs.

Quantity of pcs.	540+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,8989

Add to comparison tool Add inquiry (RFQ)

Packaging:
540

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	TDK
Inductor type:	Power
Mounting:	THT
Inductance:	1,2mH
Current:	3A
Resistance:	0,056 Ohm
Tolerance:	30%
Operating temperature (range):	-40°C ~ 125°C
Dimensions:	16.1x23.3x25.4mm
