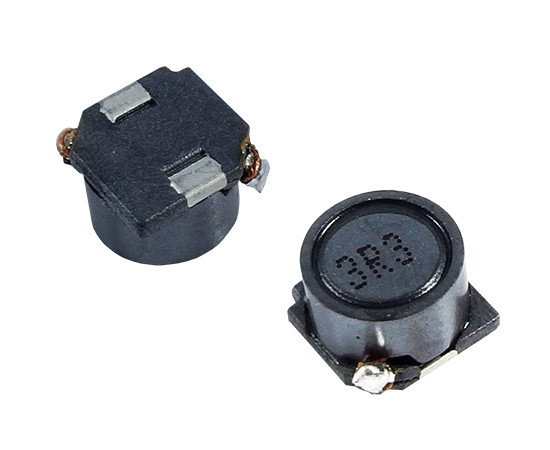

SMD Power Inductor; 560uH

Symbol Micros: D DER0705-560

123313

D DER0705-560

Contractor Symbol:

Case : Rys.DER0705

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 560uH; 20%; current: 0,23A; resistance: 1,76R; dimensions: 7.2x7.2x4.8mm; operating temperature: -40°C ~ 85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	7.2x7.2x4.8mm
Inductance:	560uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Current:	230mA
Resistance:	1,76 Ohm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	7.2x7.2x4.8mm
Inductance:	560uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Current:	230mA
Resistance:	1,76 Ohm
Operating temperature (range):	-40°C ~ 85°C
Tolerance:	20%
