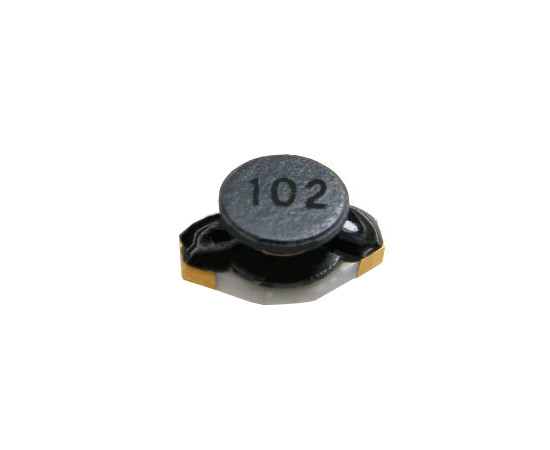

SMD Power Inductor; 100uH

Symbol Micros: D DL16-100

294042

D DL16-100

Contractor Symbol:

Case : Rys.DL16

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 100uH; 20%; current: 0,3A; resistance: 1,27R; dimensions: 6.6x4.45x2.92mm; operating temperature: -25°C ~ 125°C

Parameters

Dimensions:	6.6x4.45x2.92mm
Inductance:	100uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Current:	0,3A
Resistance:	1,27 Ohm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	6.6x4.45x2.92mm
Inductance:	100uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Current:	0,3A
Resistance:	1,27 Ohm
Operating temperature (range):	-25°C ~ 125°C
Tolerance:	20%
