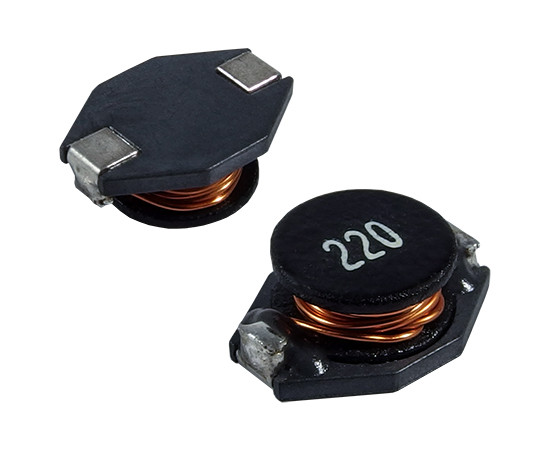

SMD Power Inductor; 2.2uH

Symbol Micros: D DL22-2.2

66985

D DL22-2.2

Contractor Symbol:

Case : Rys.DL22

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 2.2uH; 20%; current: 7A; resistance: 0.012R; dimensions: 13.5x10x5.2mm operating temperature: -25°C ~ 125°C; equivalent: D SDR1005-2R2ML

Parameters

Dimensions:	13.5x10x5.2mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Current:	7A
Resistance:	12 mOhm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	13.5x10x5.2mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Current:	7A
Resistance:	12 mOhm
Operating temperature (range):	-25°C ~ 125°C
Tolerance:	20%
