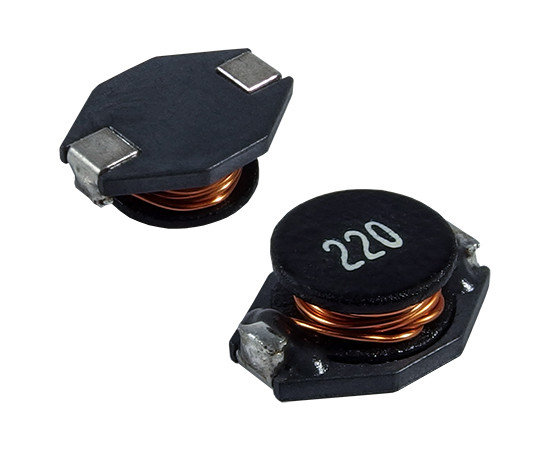

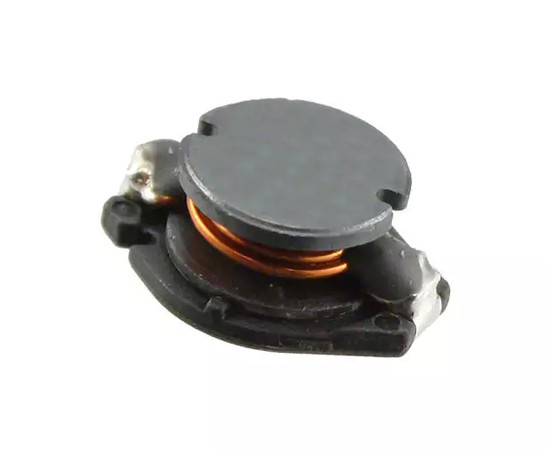

SMD Power Inductor; 22uH

Symbol Micros: D DL22-22

55995

D DL22-22

Contractor Symbol:

Case : Rys.DL22

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 22uH; 20%; current: 2.5A; resistance: 0.1R; dimensions: 13.5x10x5.2mm operating temperature: -25°C ~ 125°C; equivalent: D SDR1005-220ML

Parameters

Dimensions:	13.5x10x5.2mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Current:	2,5A
Resistance:	0,1 Ohm

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-06-28

Quantity of pcs.: 1000

• Parameters

Dimensions:	13.5x10x5.2mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	N/A
Mounting:	SMD
Current:	2,5A
Resistance:	0,1 Ohm
Operating temperature (range):	-25°C ~ 125°C
Tolerance:	20%
