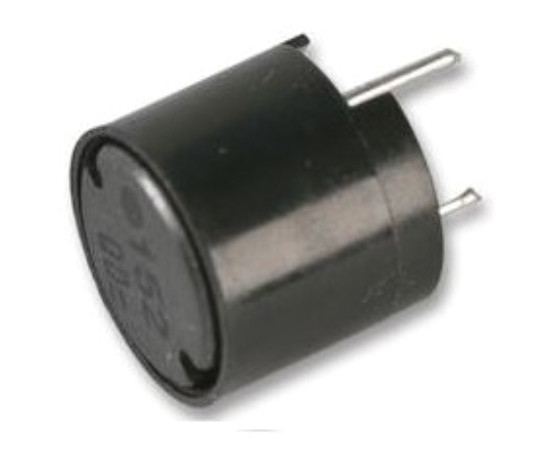

ELC09D471F Panasonic Power inductor

Symbol Micros: D ELC09D471F PAN

257848

D ELC09D471F PAN

Contractor Symbol:

Case : Rys.ELC09

Datasheet

Technical drawing Add to favourites

Power inductor; THT; 470uH; 10%; 0.39A; 0.98R; dimensions: 9,5x8,9x9,5mm; operating temperature: -20°C~105°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Manufacturer:	PANASONIC
Inductor type:	Power
Mounting:	THT
Inductance:	470uH
Current:	0,390A
Resistance:	0,980 Ohm
Tolerance:	10%

All parameters

Manufacturer:: Panasonic Manufacturer part number: ELC09D471F RoHS Case style: Rys.ELC09 Datasheet

In stock:

200 pcs.

Quantity of pcs.	2+	15+	100+	200+	1000+
Net price (EUR)	0,6763	0,3980	0,3198	0,3083	0,2945

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
100/200 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	PANASONIC
Inductor type:	Power
Mounting:	THT
Inductance:	470uH
Current:	0,390A
Resistance:	0,980 Ohm
Tolerance:	10%
Operating temperature (range):	-20°C ~ 105°C
Dimensions:	9,5x8,9x9,5mm
