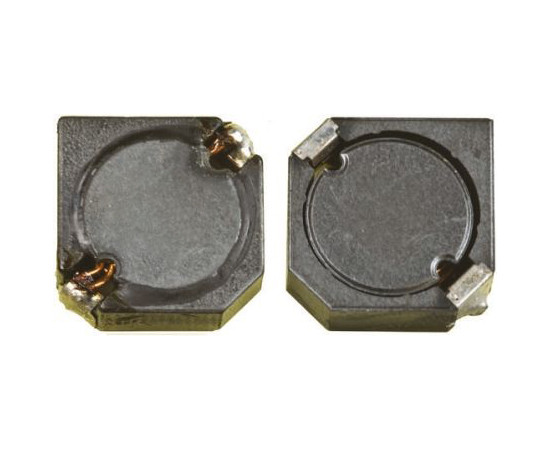

ELLCTV220M Panasonic Power inductor

Symbol Micros: D ELLCTV220M

116507

D ELLCTV220M

Contractor Symbol:

Case : Rys.ELLCTV

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 22uH; 20%; current: 2,7A; resistance: 37mR; dimensions: 12x12x4.5mm

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Dimensions:	12x12x4.5mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	PANASONIC
Mounting:	SMD
Current:	2,70A
Resistance:	0,037 Ohm

All parameters

Manufacturer:: Panasonic Manufacturer part number: ELLCTV220M RoHS Case style: Rys.ELLCTV Datasheet

In stock:

30 pcs.

Quantity of pcs.	1+	5+	30+	150+	300+
Net price (EUR)	1,4788	1,0325	0,8498	0,7904	0,7785

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
30 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	12x12x4.5mm
Inductance:	22uH
Inductor type:	Power
Manufacturer:	PANASONIC
Mounting:	SMD
Current:	2,70A
Resistance:	0,037 Ohm
Tolerance:	20%
