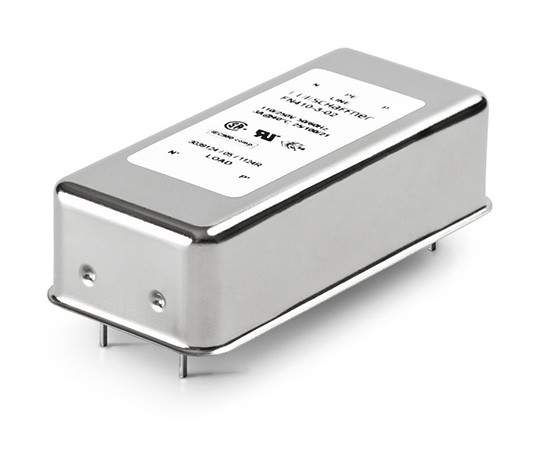

FN 410-3-02 Schaffner Filter
Write sales // micros.com.pl or call: +48 785 054 437
| Inductance: | 2mH |
| Operating current: | 3A |
| Capacitance [Cx]: | 33nF |
| Body dimensions: | 72x33x19mm |
| Filter type: | Anti-Interference |
| Manufacturer: | Schaffner |
| Max. operating voltage: | 250V |
| Inductance: | 2mH |
| Operating current: | 3A |
| Capacitance [Cx]: | 33nF |
| Body dimensions: | 72x33x19mm |
| Filter type: | Anti-Interference |
| Manufacturer: | Schaffner |
| Max. operating voltage: | 250V |
| Mounting: | THT |
| Operating temperature (range): | -25°C ~ 100°C |
High Performance Two-stage PCB-mounting EMC Filter
Technical data:
Rated current: 3 A
Rated voltage: 250 VAC
Rated inductance: 2mH
Capacitance, CX: 33nF
Capacitance, CY: 2.2nF
IEC-climate category: 25/100/21
Test voltage P/N-E: 2000 VDC
Dimensions L x W x H: 72 x 33 x 19 mm
Leakage current: 373 µA
Temperature range: -25... 85°C
The FN 410 PCB filter is a single-phase, two-stage filter designed for easy and fast PCB-mounting. Choosing the FN 410 product line brings you the rapid availability of a standard high performance filter associated with the necessary safety acceptance. Standard PCB single-phase filters are a practical solution helping you to pass EMI system approval in a short time. A selection on amperage ratings are designed to offer you the desired standard product.
Features and benefits:
• Very good conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior
• Two-stage single-phase design
• PCB through hole mounting
• Custom specific versions on request
Typical applications:
Electrical and electronic equipment
Small to medium-sized machines and household equipment
Single-phase power supplies, switch-mode power supplies
Test and measurement equipment
