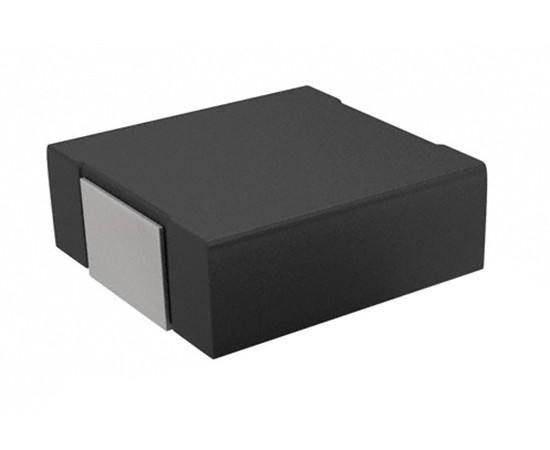

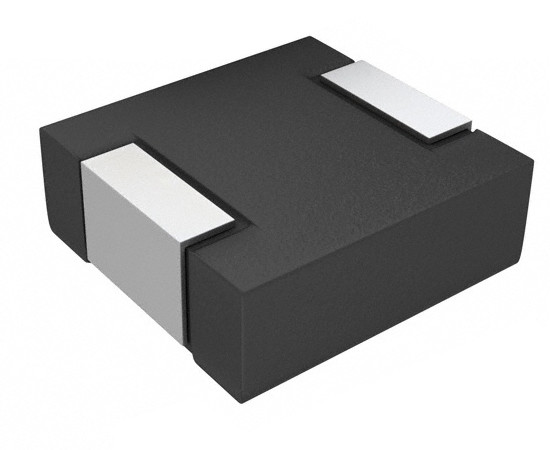

IHLP2020BZER100M11 Vishay Power inductor

Symbol Micros: D IHLP2020BZER100M11

116423

D IHLP2020BZER100M11

Contractor Symbol:

Case : Rys.IHLP2020BZ-11

Technical drawing Add to favourites

SMD power inductor; inductance: 10uH; 20%; current: 2.2A; resistance: 182,8mR; dimensions: 5,18x5,49x2mm; operating temperature: -55°C ~ 125°C

Parameters

Dimensions:	5,18x5,49x2mm
Inductance:	10uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	2,20A
Resistance:	0,1828 Ohm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	5,18x5,49x2mm
Inductance:	10uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	2,20A
Resistance:	0,1828 Ohm
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	20%
