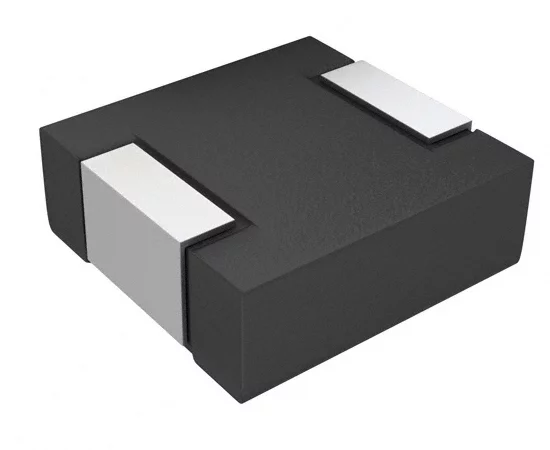

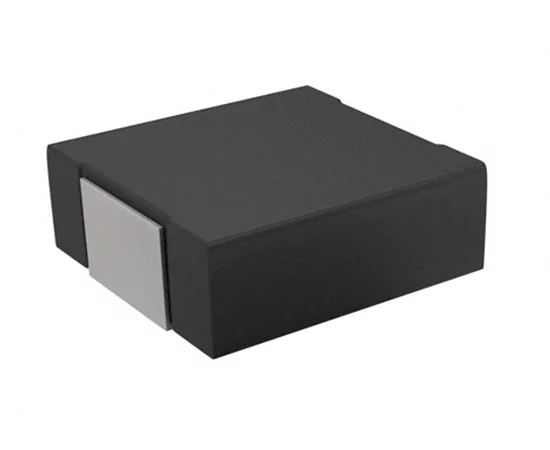

IHLP2020BZER2R2M11 Vishay Power inductor

Symbol Micros: D IHLP2020BZER2R2M11

411679

D IHLP2020BZER2R2M11

Contractor Symbol:

Case : Rys.IHLP2020BZ-11

Technical drawing Add to favourites

SMD power inductor; inductance: 2.2uH; 20%; current: 5A; resistance: 37.7mR; dimensions: 5,18x5,49x2mm; operating temperature: -55°C ~ 125°C

Parameters

Dimensions:	5,18x5,49x2mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	5A
Resistance:	37,7mOhm

All parameters

Manufacturer:: - Manufacturer part number: IHLP2020BZER2R2M11 Case style: Rys.IHLP2020BZ-11

External warehouse:

16000 pcs.

Quantity of pcs.	1+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2663

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	5,18x5,49x2mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	5A
Resistance:	37,7mOhm
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	20%
