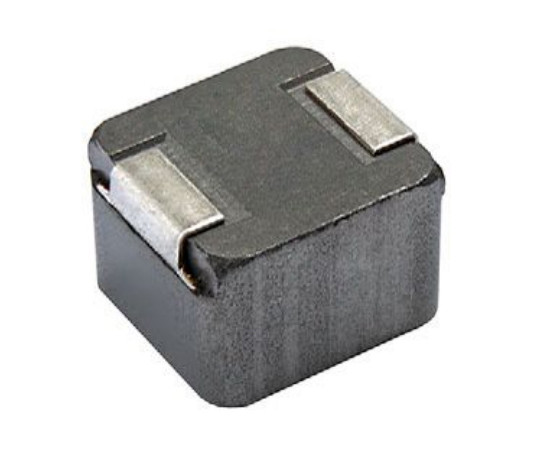

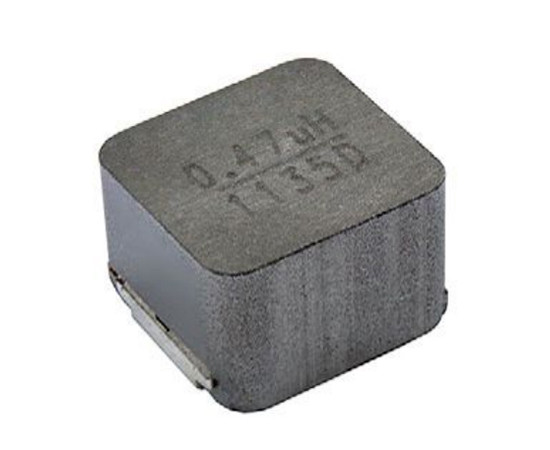

IHLP2525EZER3R3M01 Vishay Power inductor

Symbol Micros: D IHLP2525EZER3R3M01

435365

D IHLP2525EZER3R3M01

Contractor Symbol:

Case : Rys.IHLP2525EZ

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 3.3uH; 20%; current: 8A; resistance: 20.9mR; dimensions: 6,47x6,86x5mm operating temperature: -55°C ~ 125°C

Parameters

Dimensions:	6,47x6,86x5mm
Inductance:	3,3uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	8A
Resistance:	0,03 Ohm

All parameters

Manufacturer:: - Manufacturer part number: IHLP2525EZER3R3M01 Case style: Rys.IHLP2525EZ

External warehouse:

6000 pcs.

Quantity of pcs.	1+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,5115

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	6,47x6,86x5mm
Inductance:	3,3uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	8A
Resistance:	0,03 Ohm
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	20%
