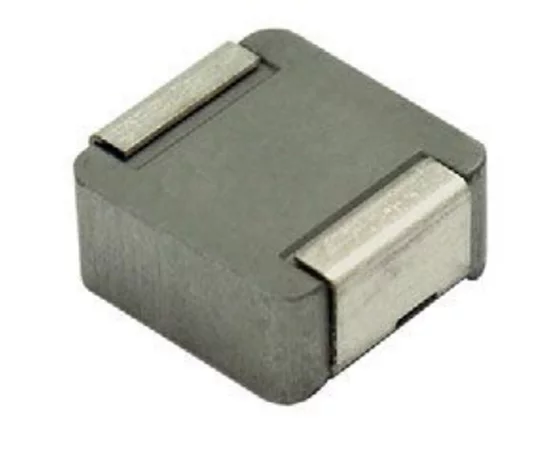

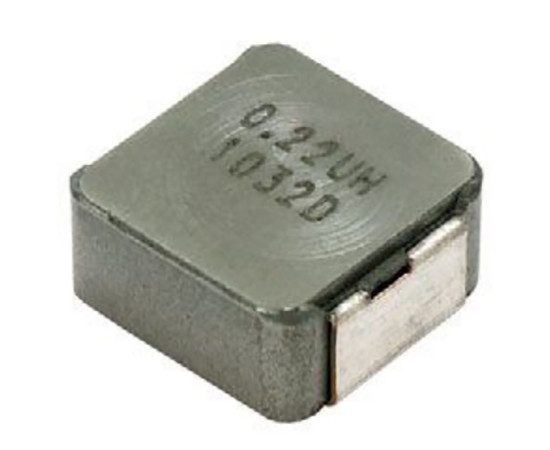

IHLP3232DZERR68M11 Vishay Power inductor

Symbol Micros: D IHLP3232DZERR68M11

493305

D IHLP3232DZERR68M11

Contractor Symbol:

Case : Rys.IHLP3232DZ

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 0.68uH; 20%; current: 22.2A; resistance: 3.22mR; dimensions: 8,18x8,64x4mm; operating temperature: -55°C ~ 125°C

Parameters

Dimensions:	8.18x8.64x4mm
Inductance:	680nH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	22,2A
Resistance:	3,22mOhm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	8.18x8.64x4mm
Inductance:	680nH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	22,2A
Resistance:	3,22mOhm
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	20%
