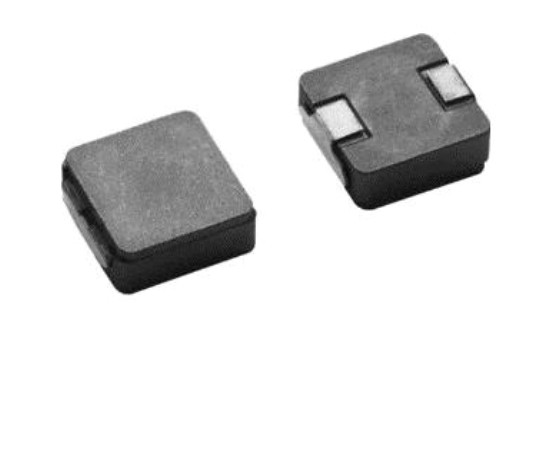

IHLP4040DZER2R2M51 Vishay Power inductor

Symbol Micros: D IHLP4040DZER2R2M51

451789

D IHLP4040DZER2R2M51

Contractor Symbol:

Case : Rys.IHLP4040DZ

Datasheet

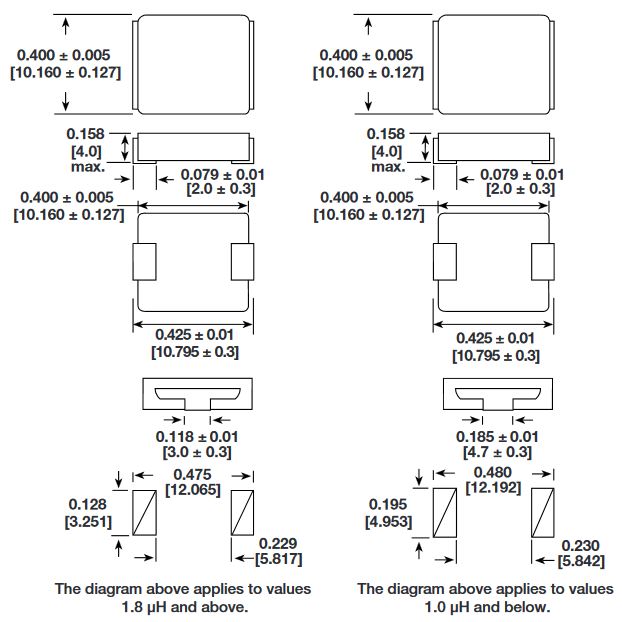

Technical drawing Add to favourites

SMD power inductor; inductance: 2.2uH; 20%; current: 15A; resistance: 8.76mR; dimensions: 10,16x10,16x4mm; operating temperature: -55°C ~ 155°C

Parameters

Dimensions:	10.16x10.16x4mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	15A
Resistance:	8,76mOhm

All parameters

Manufacturer:: Vishay Manufacturer part number: IHLP4040DZER2R2M51 Case style: Rys.IHLP4040DZ

External warehouse:

2000 pcs.

Quantity of pcs.	500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,3355

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	10.16x10.16x4mm
Inductance:	2,2uH
Inductor type:	Power
Manufacturer:	VISHAY
Mounting:	SMD
Current:	15A
Resistance:	8,76mOhm
Operating temperature (range):	-55°C ~ 155°C
Tolerance:	20%
