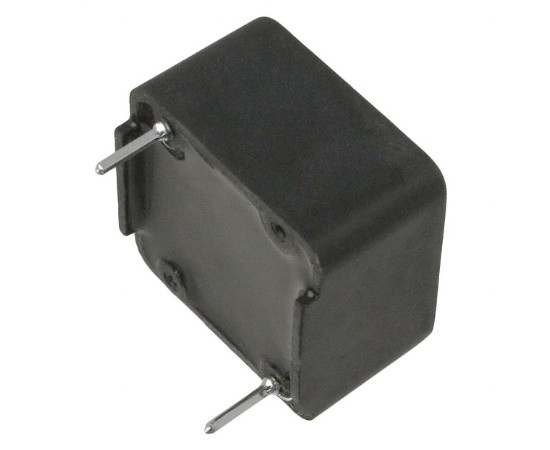

PE-52629NL PULSE Power inductor

Symbol Micros: D PE-52629NL PULSE

262079

D PE-52629NL PULSE

Contractor Symbol:

Case : Rys.PE-526xxNL

Datasheet

Technical drawing Add to favourites

Power Inductor; THT; 680uH; 20%; 0.85A; 1.5R; dimensions: 18.03x18.03x11,68mm; operating temperature: -40°C~130°C

Parameters

Manufacturer:	Pulse
Inductor type:	Power
Mounting:	THT
Inductance:	680uH
Current:	0,85A
Resistance:	1,5 Ohm
Tolerance:	20%

All parameters

Manufacturer:: PULSE Manufacturer part number: PE-52629NL RoHS Case style: Rys.PE-526xxNL Datasheet

In stock:

25 pcs.

Quantity of pcs.	1+	5+	25+	100+	300+
Net price (EUR)	1,9374	1,4890	1,3044	1,2373	1,2109

Add to comparison tool Add inquiry (RFQ)

Packaging:
25 Quantity (multiple: 1)

- +

Manufacturer:: PULSE Manufacturer part number: PE-52629NL Case style: Rys.PE-526xxNL

External warehouse:

5467 pcs.

Quantity of pcs.	25+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,2109

Add to comparison tool Add inquiry (RFQ)

Packaging:
25

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	Pulse
Inductor type:	Power
Mounting:	THT
Inductance:	680uH
Current:	0,85A
Resistance:	1,5 Ohm
Tolerance:	20%
Operating temperature (range):	-40°C ~ 130°C
Dimensions:	18.03x18.03x11,68mm
