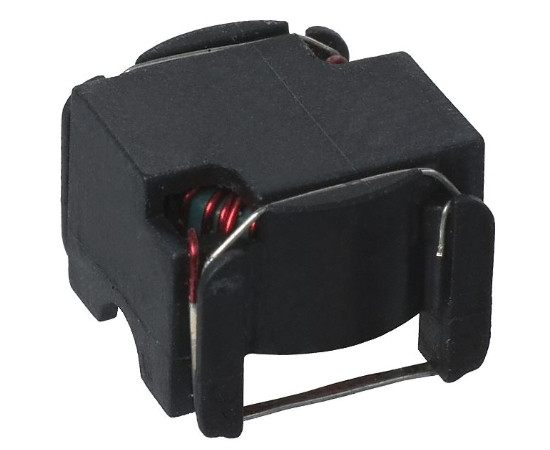

PE-53631NL Pulse Power inductor

Symbol Micros: D PE-53631NL PULSE

262085

D PE-53631NL PULSE

Contractor Symbol:

Case : Rys.PE-53xxxNL

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 9.4uH; current: 2.8A; resistance: 43.4mR; dimensions: 11.05x11.18x9,14mm; operating temperature: -40°C ~ 130°C

Parameters

Dimensions:	11.05x11.18x9,14mm
Inductance:	9,4uH
Inductor type:	Power
Manufacturer:	Pulse
Mounting:	SMD
Current:	2,8A
Resistance:	43,4 mOhm

All parameters

Manufacturer:: PULSE Manufacturer part number: PE-53631NL RoHS Case style: Rys.PE-53xxxNL Datasheet

In stock:

45 pcs.

Quantity of pcs.	1+	3+	10+	45+	135+
Net price (EUR)	1,4594	1,1104	0,9159	0,8058	0,7684

Add to comparison tool Add inquiry (RFQ)

Packaging:
45 Quantity (multiple: 1)

- +

Manufacturer:: PULSE Manufacturer part number: PE-53631NL Case style: Rys.PE-53xxxNL

External warehouse:

1890 pcs.

Quantity of pcs.	180+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,7684

Add to comparison tool Add inquiry (RFQ)

Packaging:
45

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	11.05x11.18x9,14mm
Inductance:	9,4uH
Inductor type:	Power
Manufacturer:	Pulse
Mounting:	SMD
Current:	2,8A
Resistance:	43,4 mOhm
Operating temperature (range):	-40°C ~ 130°C
