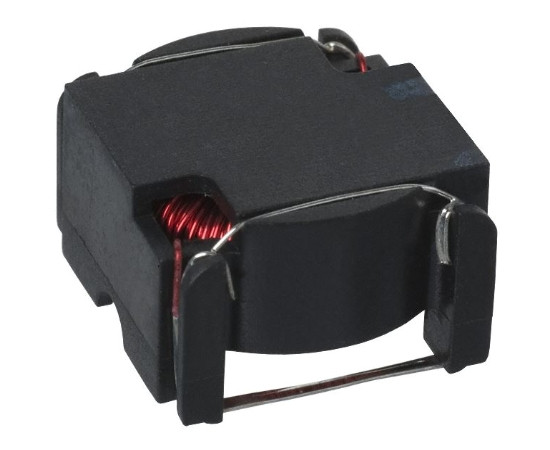

PE-53652NL Pulse Power inductor

Symbol Micros: D PE-53652NL PULSE

262086

D PE-53652NL PULSE

Contractor Symbol:

Case : Rys.PE-53xxxNL

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 9uH; current: 5,5A; resistance: 28mR; dimensions: 15.24x15.75x9,91mm; operating temperature: -40°C ~ 130°C

Parameters

Dimensions:	15.24x15.75x9,91mm
Inductance:	9uH
Inductor type:	Power
Manufacturer:	Pulse
Mounting:	SMD
Current:	5,5A
Resistance:	0,028 Ohm

All parameters

Manufacturer:: PULSE Manufacturer part number: PE-53652NL RoHS Case style: Rys.PE-53xxxNL Datasheet

In stock:

30 pcs.

Quantity of pcs.	1+	5+	30+	90+	270+
Net price (EUR)	2,0498	1,6258	1,4407	1,3915	1,3657

Add to comparison tool Add inquiry (RFQ)

Packaging:
30/90 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	15.24x15.75x9,91mm
Inductance:	9uH
Inductor type:	Power
Manufacturer:	Pulse
Mounting:	SMD
Current:	5,5A
Resistance:	0,028 Ohm
Operating temperature (range):	-40°C ~ 130°C
