PE-92112NL Pulse Inductor

Symbol Micros: D PE-92112NL PULSE

262096

D PE-92112NL PULSE

Contractor Symbol:

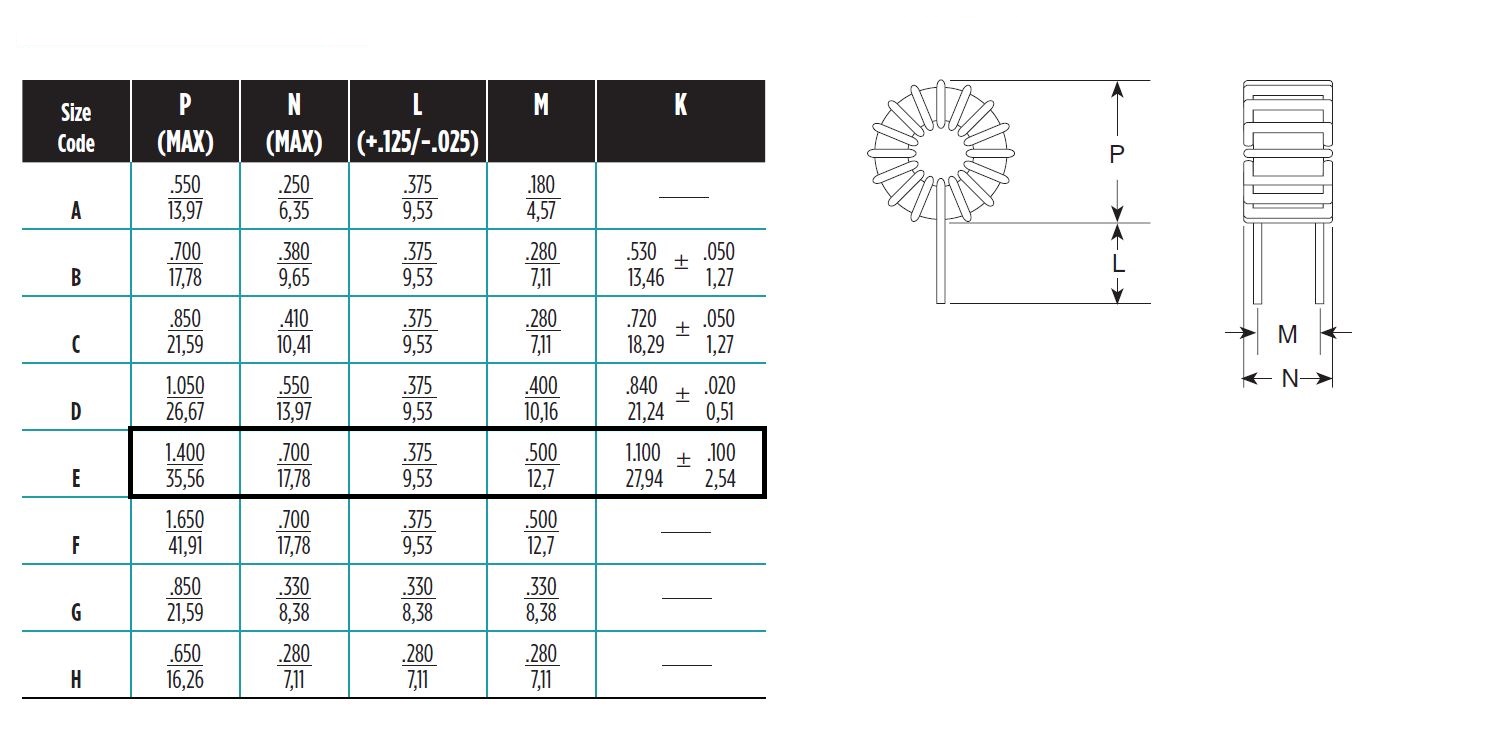

Case : Rys.PE-92xxxNL

Datasheet

Technical drawing Add to favourites

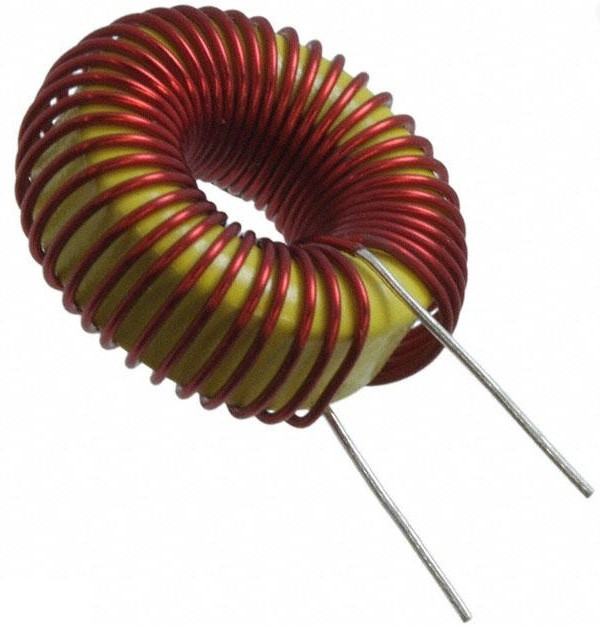

Toroid inductor; THT; inductance: 100uH; 20%; current: 5A; resistance: 34mR; dimensions: 35,56x17,78x12,7mm; operating temperature: -40°C~130°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Manufacturer:	Pulse
Inductor type:	Toroidal
Mounting:	THT
Inductance:	100uH
Current:	5A
Resistance:	34 mOhm
Tolerance:	20%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Manufacturer:	Pulse
Inductor type:	Toroidal
Mounting:	THT
Inductance:	100uH
Current:	5A
Resistance:	34 mOhm
Tolerance:	20%
Operating temperature (range):	-40°C ~ 130°C
Dimensions:	35,56x17,78x12.7mm
