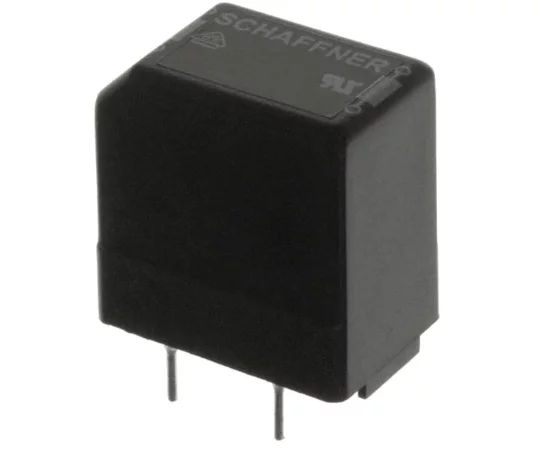

RN 214-0.5-02-56M Schaffner Inductor

Symbol Micros: D RN214-0.5-02-56M

258271

D RN214-0.5-02-56M

Contractor Symbol:

Case : Rys.RN214

Datasheet

Technical drawing Add to favourites

Inductor; THT; 56mH; -30%, +50%; 0.5A; 1.7R; dimensions: 12,5x10mm; operating temperature: -40°C~100°C

Parameters

Manufacturer:	Schaffner
Mounting:	THT
Inductance:	56mH
Current:	0,5A
Resistance:	1,7 Ohm
Tolerance:	-30%,+50%
Operating temperature (range):	-40°C ~ 100°C

All parameters

Manufacturer:: SCHAFFNER Manufacturer part number: RN214-0.5-02-56M RoHS Case style: Rys.RN214 Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	5+	25+	50+	200+
Net price (EUR)	1,6677	1,2314	1,0602	1,0227	0,9804

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/50 Quantity (multiple: 1)

- +

Manufacturer:: SCHAFFNER Manufacturer part number: RN214-0.5-02-56M Case style: Rys.RN214

External warehouse:

155 pcs.

Quantity of pcs.	5+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,2013

Add to comparison tool Add inquiry (RFQ)

Packaging:
5

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Manufacturer:	Schaffner
Mounting:	THT
Inductance:	56mH
Current:	0,5A
Resistance:	1,7 Ohm
Tolerance:	-30%,+50%
Operating temperature (range):	-40°C ~ 100°C
Dimensions:	12,5x10mm
