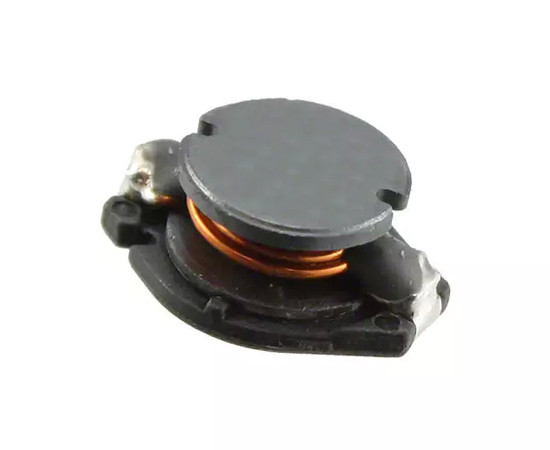

SDR1005-151KL Bourns Power inductor

Symbol Micros: D SDR1005-151KL

114007

D SDR1005-151KL

Contractor Symbol:

Case : Rys.SDR1005

Datasheet

Technical drawing Add to favourites

SMD power inductor; inductance: 150uH; 10%; current: 0,8A; resistance: 0,59R; dimensions: 12,7x10x5mm; operating temperature: -40°C ~ 125°C

Parameters

Dimensions:	12.7x10x5mm
Inductance:	150uH
Inductor type:	Power
Manufacturer:	Bourns
Mounting:	SMD
Current:	0,8A
Resistance:	0,59 Ohm

All parameters

Manufacturer:: Bourns Manufacturer part number: SDR1005-151KL Case style: Rys.SDR1005

External warehouse:

1800 pcs.

Quantity of pcs.	600+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2170

Add to comparison tool Add inquiry (RFQ)

Packaging:
600

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: Bourns Manufacturer part number: SDR1005-151KL Case style: Rys.SDR1005

External warehouse:

7200 pcs.

Quantity of pcs.	600+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2427

Add to comparison tool Add inquiry (RFQ)

Packaging:
600

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Dimensions:	12.7x10x5mm
Inductance:	150uH
Inductor type:	Power
Manufacturer:	Bourns
Mounting:	SMD
Current:	0,8A
Resistance:	0,59 Ohm
Operating temperature (range):	-40°C ~ 125°C
Tolerance:	10%
